A.9 Installing the Gigabit Ethernet Board Kit 423

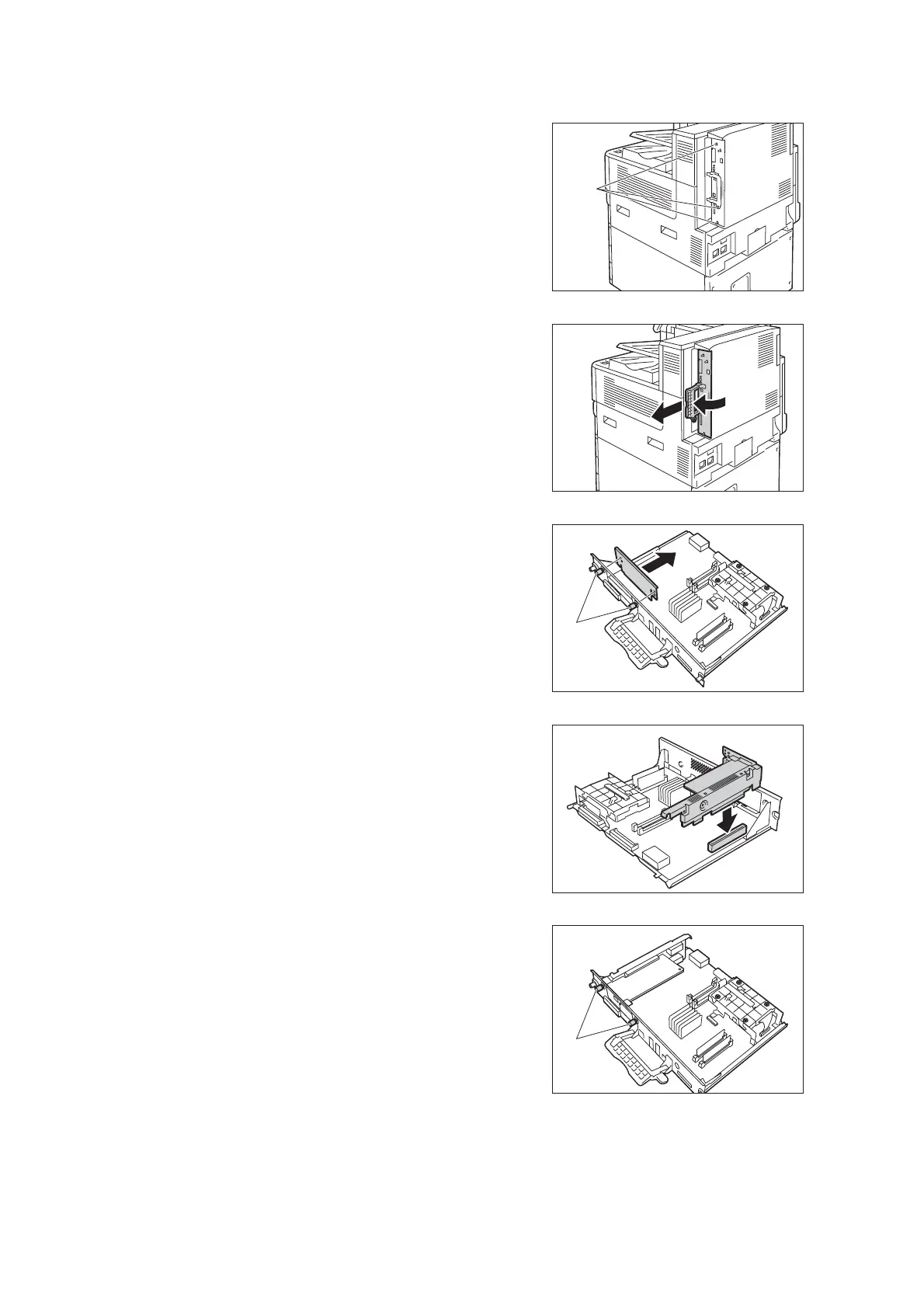

5. Loosen the three screws on the control
board of the printer.
6. Pull the handle on the control board and
then carefully pull the control board out of
the printer. Place the control board on a
table top or some other flat surface.
Important
• When pulling out the control board, hold it with both
hands so you do not drop it.
7. Remove the three screws on the control
board and then remove the dummy plate.
Note
• Note that you will need the screws you remove here in
step 9 of this procedure.
8. Aligning the Gigabit Ethernet Board Kit
(with frame) with the control board
connectors, insert the kit from above into
the connectors.
9. Use the screws you removed in step 7 to
secure the Gigabit Ethernet Board Kit to the
front plate of the control board.
screw
screw
screw
To Next Page
