ETERNUS CS800 System Components Preface
8 U41842-J-Z125-1-76
ETERNUS CS800 System Components
The ETERNUS CS800 system consists of a host component, which is the PRIMERGY
RX300 S5 server, and at least one additional storage component, which is the ETERNUS
DX80 basic module. The system can be extended by up to 9 further DX80 expansion
modules.

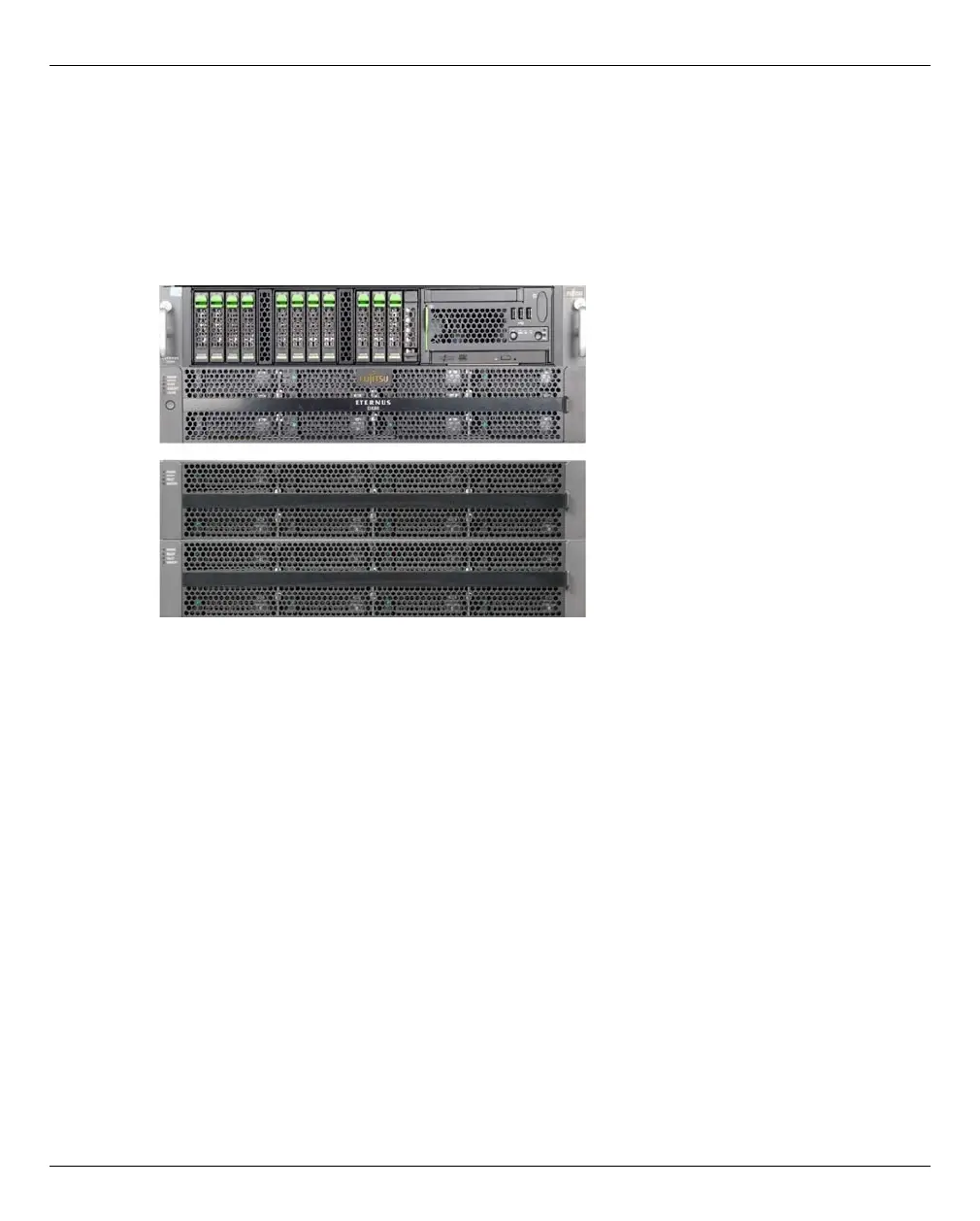

Figure 1: ETERNUS CS800
Two versions of the ETERNUS CS800 are provided:
● "CS800 NAS Basic"
● "CS800 NAS Performance"
CS800 NAS Basic
This version provides a base amount of network throughput, full data storage facility and
optionally path-to-tape capability. It includes the following features:
● 1 server unit with 48 GB RAM and RAID1 (1 + 1) for the Operating System and for
StorNext and Block pool metadata
● 1 basic storage module with 8 TB usable storage capacity and RAID 6 (4 + 2)
● 0 to 9 storage expansion modules, with 8 TB usable capacity and RAID 6 (4 + 2) each
● 7 x 1 GbE ports to the customer LAN plus one 1 GbE service port
● 2 x 4 Gb Fibre Channel ports (optionally, for path to tape only, not for ingestion)
Refer to the CS800 User Guide for more details.
Server unit (RX300 S5)
Basic storage module (DX80)
Storage expansion modules (DX80)
