Fujitsu ETERNUS CS800 Getting Started Guide

CS800 Storage Expansion Module Hardware Description
76 U41842-J-Z125-1-76
Rear Panel Features and Indicators

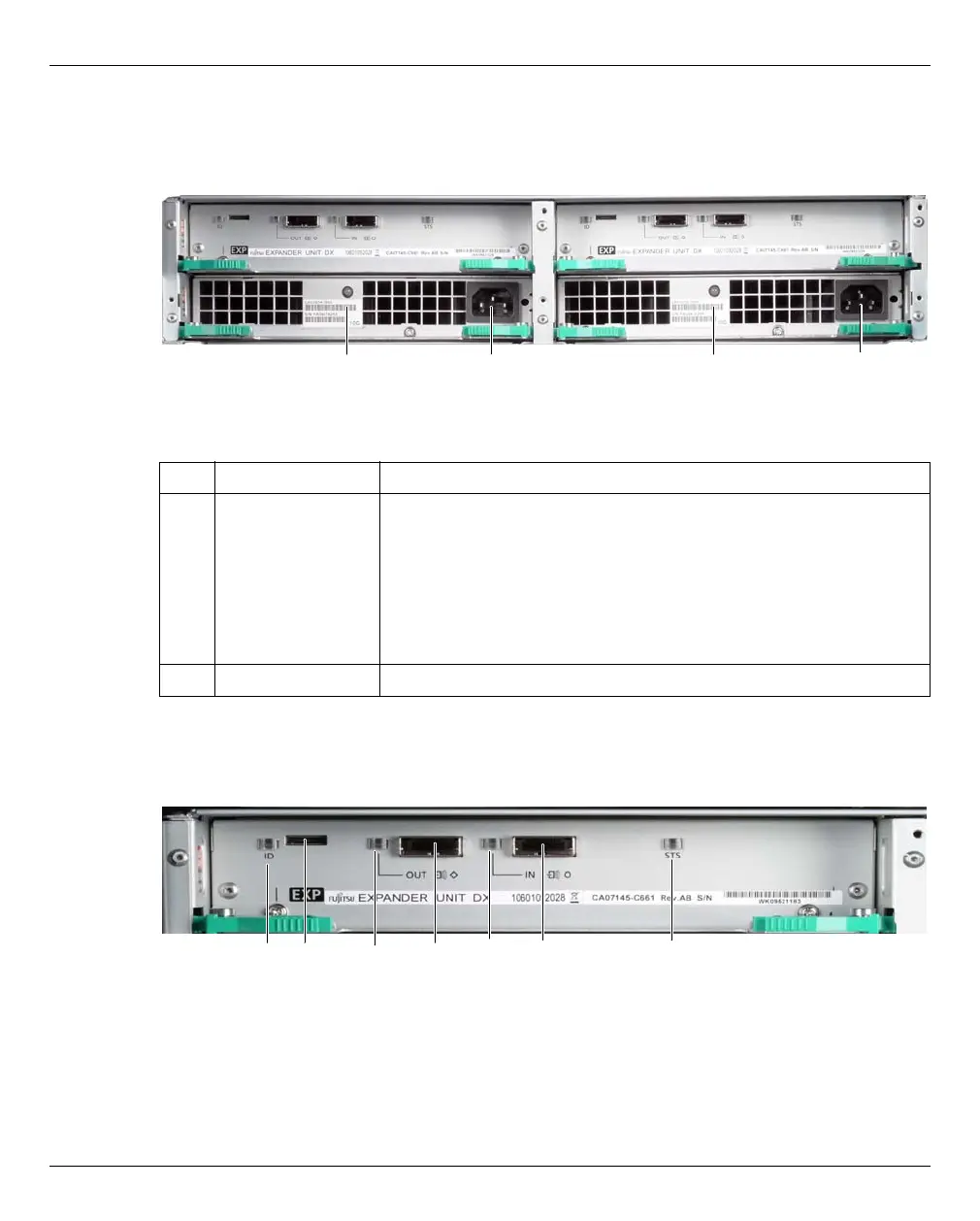

Figure 52 shows the rear panel of the DX80 storage expansion module.
Figure 52: Rear View of the DX80 Storage Expansion Module
Table 14: Indicator and Power Supply
Figure 53 shows details about the connectors and indicators. Ta ble 15 describes each item.
Figure 53: Connectors and Indicators on the Rear of the DX80 Storage Component
Item Indicator Description
1 Status LED
(green/orange)
Blinks green when AC power is supplied (power cord is
connected) but DC power is turned off.
Glows green when AC power is supplied (power cord is
connected) and DC power is turned on.
Glows orange to indicate a fault has been detected in a fan or
power supply.
2 Power Supply Connector for power supply
1 12
2
1 2
3
4
5
6
7
