2.2 Names and Functions of Parts
2.2 Names and Functions of Parts
This section describes the names and functions of parts on the front, control panel and rear of the
PRIMEPOWER200 Pedestal Server.
2.2.1 Front side
The names and functions of parts on the front of the PRIMEPOWER200 Pedestal Server are as follows.
(1) Control Panel
CD-ROM Unit
Floppy Disk Unit
(maintenance only)
8mm Tape Unit or
DAT (DDS4) Unit (option)
(2) Panel Cover
(open)
(3) Stabilizing Feet

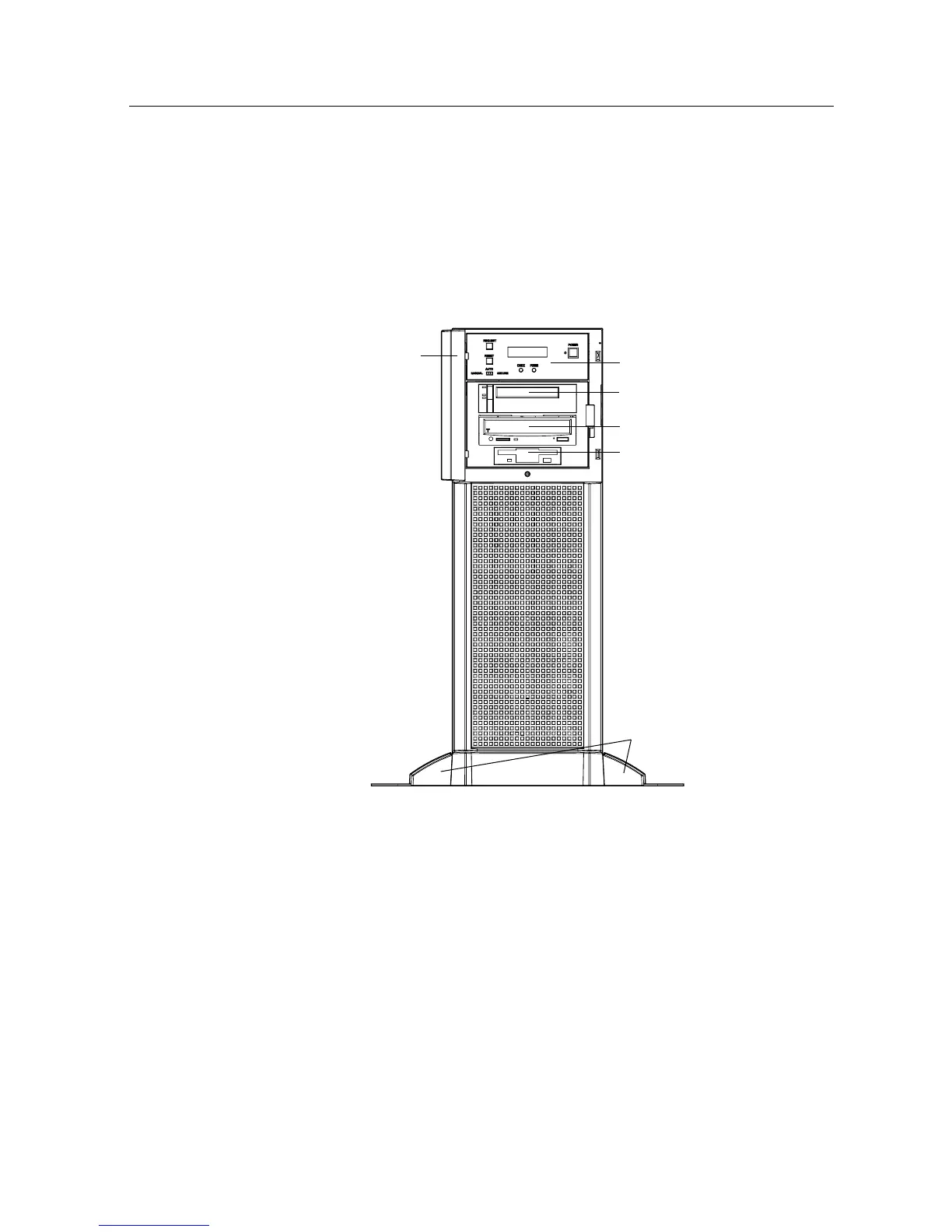

Figure 2.2 Front of PRIMEPOWER200 Pedestal Server
(1) Control panel
Contains various switches and indicator LEDs. See "2.2.2 Control Panel" for details.
(2) Panel cover
The panel cover can be opened to its right after being unlocked.
The LCD panel and the POWER and CHECK LEDs can be checked with the cover closed.
(3) Stabilizing feet
The stabilizing feet prevent the PRIMEPOWER200 Pedestal Server from falling over when pushed
from the side or in an earthquake. When installing the PRIMEPOWER200 Pedestal Server, be sure
to attach the stabilizing feet. If the Expansion Disk Cabinet is installed next to the PRIMEPOWER
Server, install the stabilizing feet only on the side opposite to the Expansion Disk Cabinet.
