CHAPTER 3 PRIMEPOWER200 Rackmount (4U) Server
3.4.5 Adding PCI cards
There are three types of PCI card: a PCI card designed to operate in 3.3V slots, a PCI card designed to operate in
5V slots, and a PCI (universal) card design to operate in both 3.3V and 5V slots. Though most PCI cards operate
at a 33MHz clock, some cards operate at a 66MHz clock.
Refer to Table 3.5 and Figure 3.8 below for details of the PCI slot positions when installing PCI cards.
Table 3.5 PCI Slot Specifications
PCI
Bus
Slot / Card
Width (bits)
PCI Slot
number
PCI Clock
Rate (MHz)
Card Input
Voltage
5V or Universal
long / short
6
5
4
3
2
1
D
D
D
C
B
A
64 / 32, 64
64 / 32, 64
64 / 32, 64
64 / 32, 64
64 / 32, 64
64 / 32, 64
33
33
33
33
33 / 66
33 / 66
5V or Universal
5V or Universal
5V or Universal
3.3V or Universal
3.3V or Universal
long
long
long
short
short
short
PCI slot #1
PCI slot #2
PCI slot #3
PCI slot #4
PCI slot #5
PCI slot #6

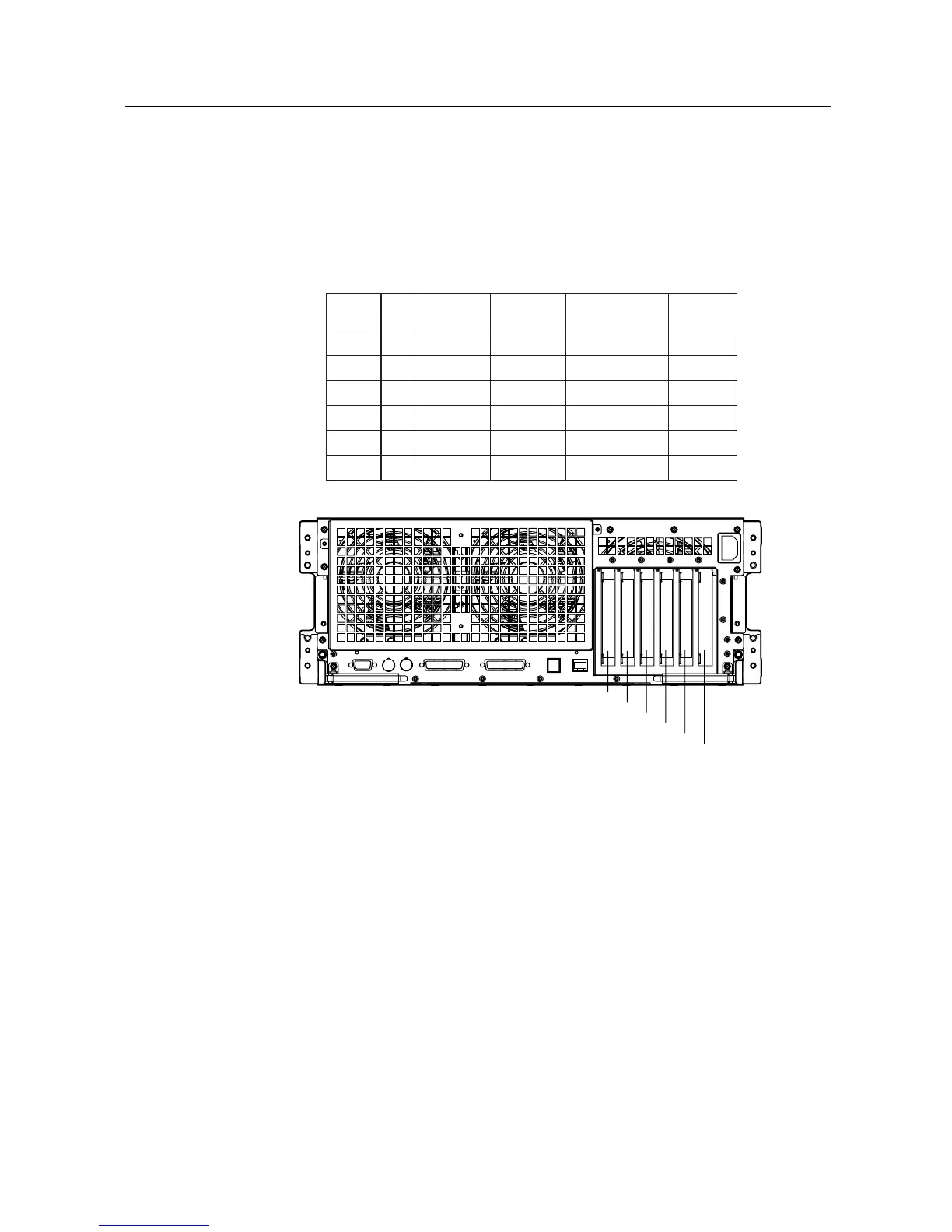

Figure 3.8 Rear View of PRIMEPOWER200 Rackmount (4U) showing position of PCI slots
44
