CHAPTER 2 PRIMEPOWER200 Pedestal Server
2.4.3 Adding hard disk drives
Disk drive configurations
Up to eight hot-swappable UltraSCSI disk drives can be added to the PRIMEPOWER200 Pedestal
Server. Removing the front cover can access the disk drives shown in the following figure. The base
SCSI unit (bays #0to#3) is connected to the base UltraSCSI bus, and the optional Disk Expansion
Unit (bays #0to#3) should be connected to an UltraSCSI bus card installed in a PCI slot.
#0 #1 #2 #3
#0 #1 #2 #3
Base SCSI Unit
POWER LED
Disk Expansion Unit
ACTIVE LED (Green)
FAULT LED (Amber)

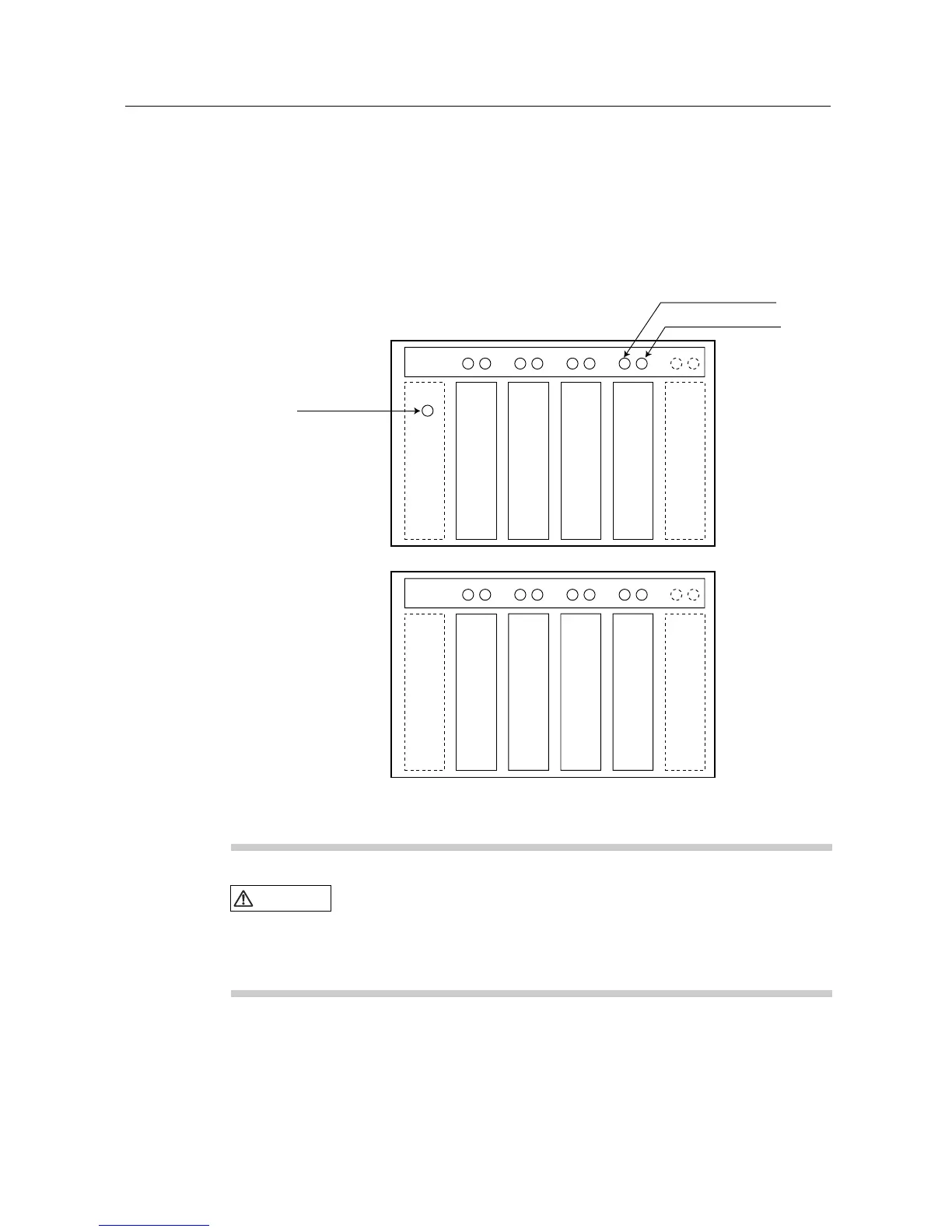

Figure 2.8 PRIMEPOWER200 Disk Drive Configuration
CAUTION
Data Destruction
Set the UltraSCSI and PCI card buses correctly. If these buses are set
incorrectly, data may be lost as hot-swapping of these disk drives cannot be
performed correctly.
