Installing Internal Options

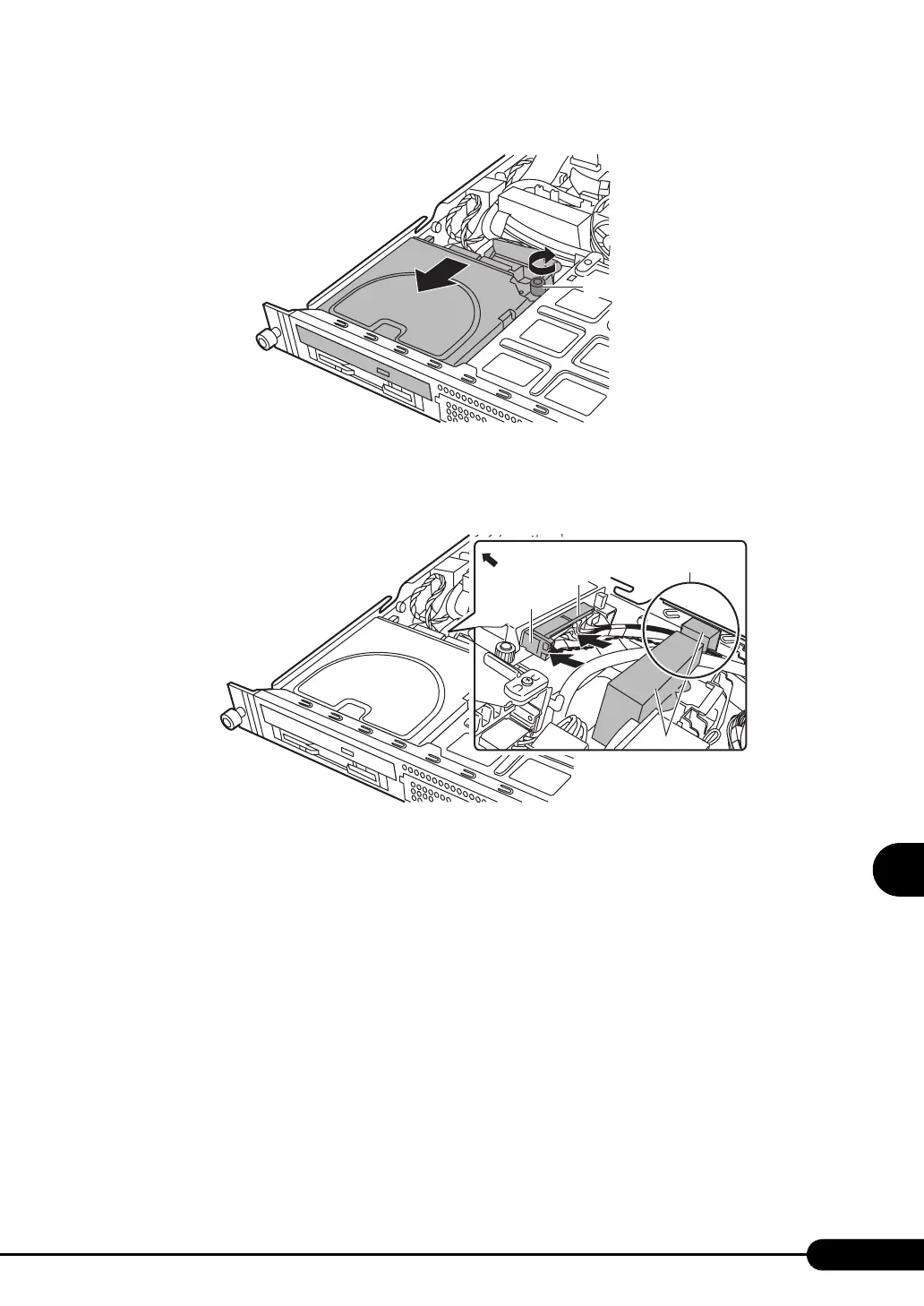

2. Slide the CR-ROM drive forward and tighten the screws.
5 Connect the IDE and power cables.
Use the IDE and power cables connected to the server.
Fix the connected cables between the pieces of the foam.
6 Attach the top cover.
"7.2 Removing and Attaching the Top Cover" (pg.164)
■ How to Remove the CD-ROM Drive Unit
To remove the CD-ROM drive unit, simply reverse the installation procedures.
Screw
Foam
Power cable
IDE cable
Fix the cables in between
the pieces of the foam
Front
To Next Page
