Chapter 1 Overview
1.3 Component Names and Functions
This section explains the component names and functions of the server.

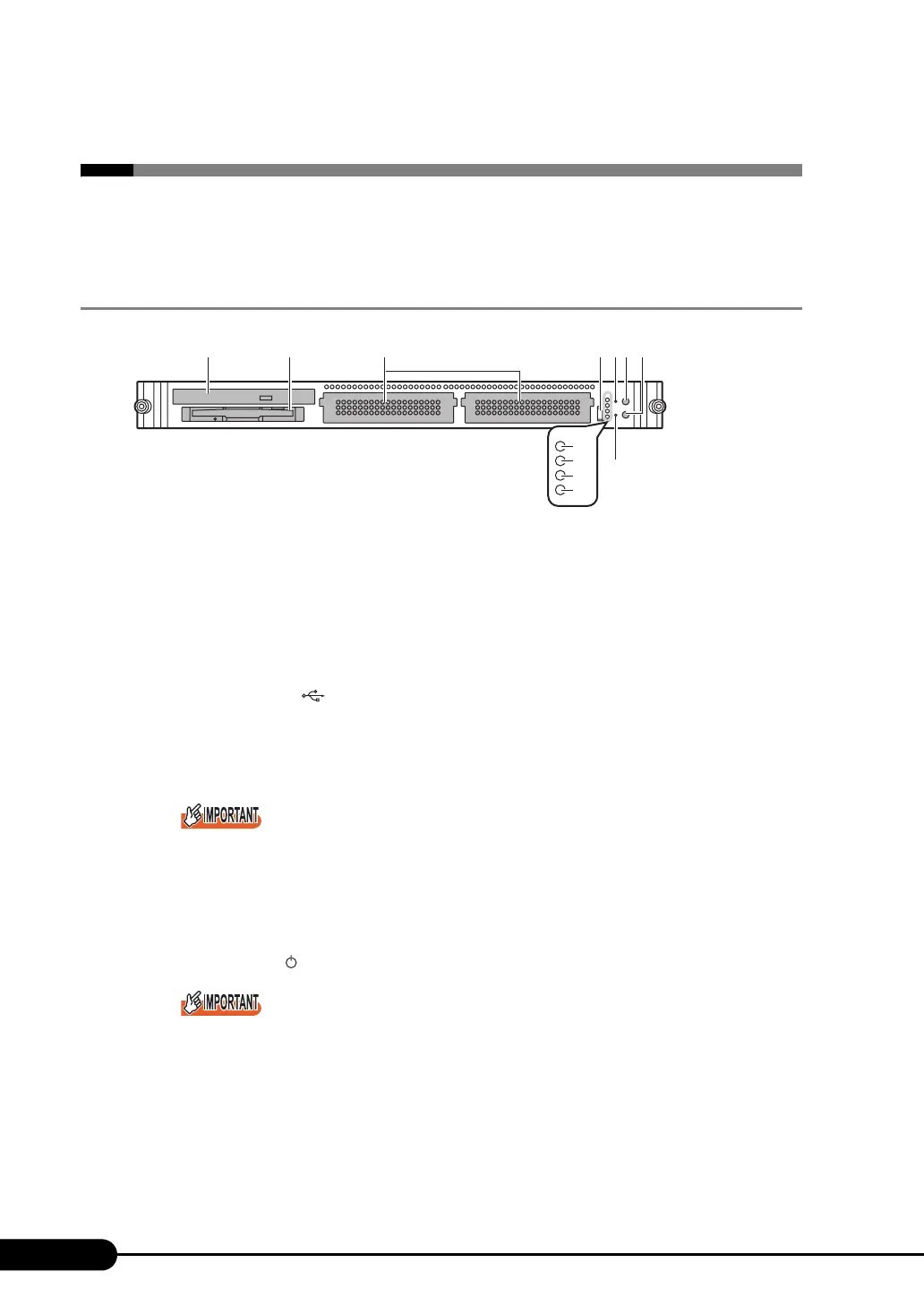

1.3.1 Server (Front View)
a Internal CD-ROM drive unit (optional)
Reads data or programs from a CD-ROM.
b Floppy disk drive unit
Writes/reads data to/from a floppy disk.
c 3.5-inch storage bay
Contains an internal hard disk unit. This server can have up to two internal hard disk units.
d USB connector ( )
Connects peripheral equipment conforming to the USB standard (2.0 or 1.1).
e Reset switch ( )
Pressing this switch resets and restarts the system.
 Do not reset when the hard disk access LED is lit. Data in the hard disk may be damaged.
f System identification LED button ( )
When pressing this button, the front and rear system identification LEDs are lit blue so that the
locations of devices being maintained can be determined.
g Power switch ( )
 Do not turn the server off when the hard disk access display LED is blinking.
Data in the hard disk may be damaged.
h Maintenance switch ( )
This switch is used only by maintenance personnel. Do not touch this.
a db c e
h
f
g
i
j
k
l
RST
ID
NMI
