PRIMERGY RX100 S2 User’s Guide
7
Installing Internal Options
7.7 Connection of Optional Devices
This section explains the connection of optional devices.
7.7.1 Connection Examples of Internal Option Devices
The following shows connection examples of internal option devices. Connection conditions vary
depending on examples. See each example.

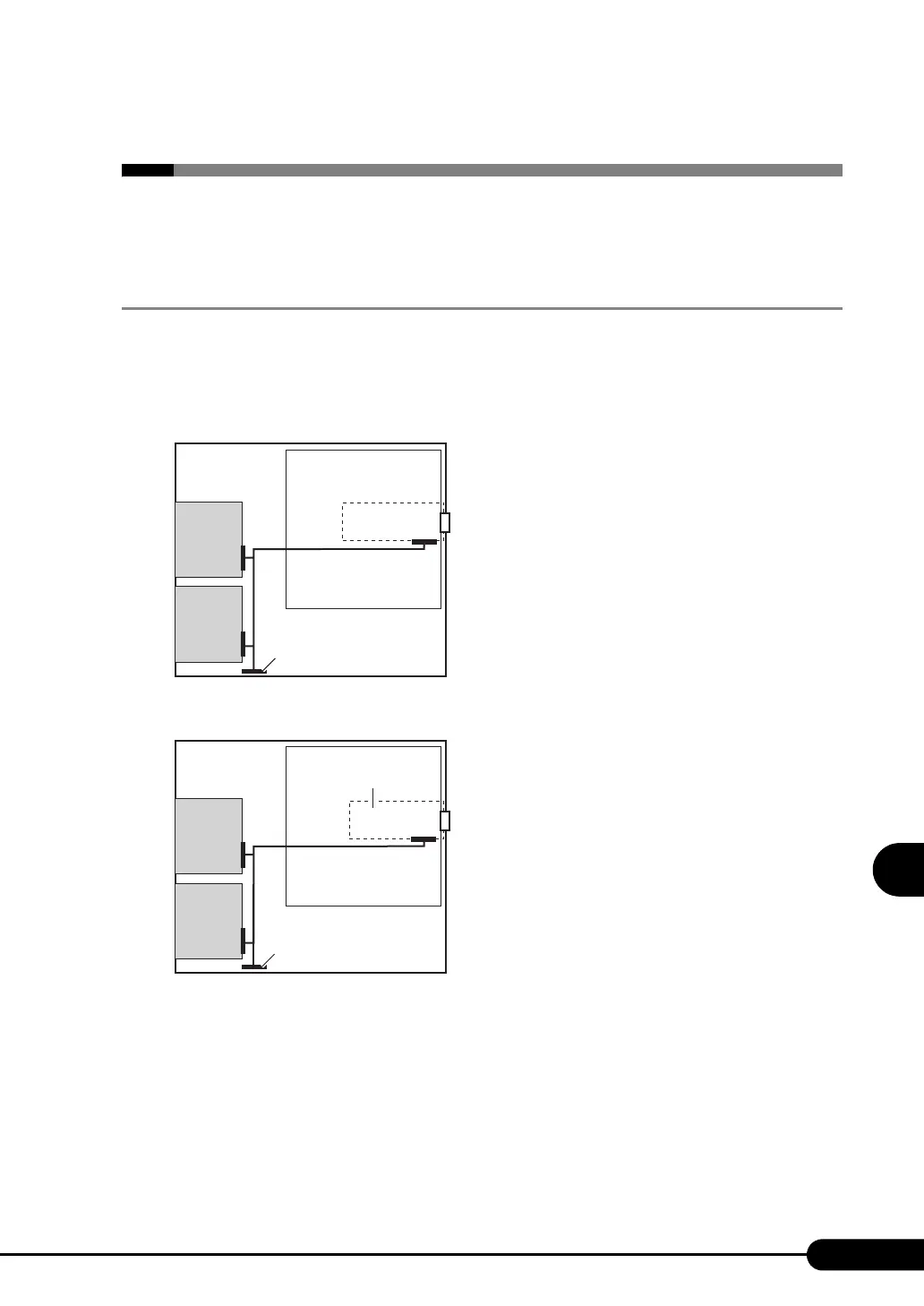

■ Hard Disk Connections
■ Connecting of a Hard Disk Unit to Configure an Array System
Server
Baseboard
Terminator
Bay2
Bay1
SCSI Ctrl U160 lp
(PG-130L)
Baseboard
Server
RAID Ctrl 1-Channel
64MB (PG-141C1L)
Terminator
Bay2
Bay1
