Chapter 1 Overview

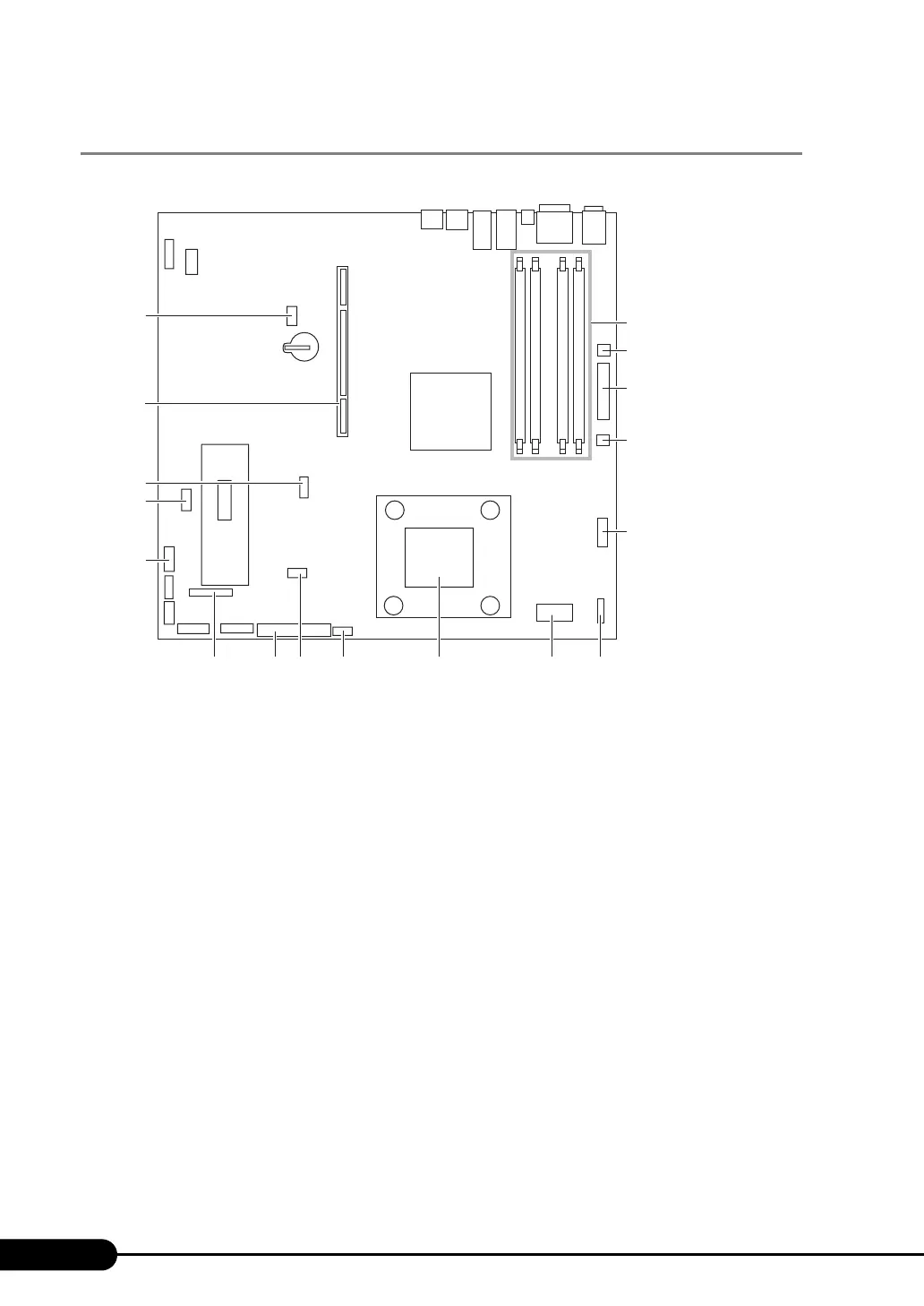

1.3.4 Baseboard
a Memory slots
b Power control connector
The power unit cable is plugged in.
c ATX power connector
The power unit cable is plugged in.
d ATX12V power connector
The ATX12V power unit connector cable is plugged in.
e Fan 6/7 connector
The system fan 6/7 cable is plugged in.
f Fan 3/4 connector
The system fan 3/4 cable is plugged in.
g Front panel connector
The front panel cable is plugged in.
h CPU socket
i Fan 1/2 connector
The system fan 1/2 cable is plugged in.
j JP2 (Fixed)
k IDE connector for CD-ROM drive
An IDE cable for the optional CD-ROM drive is plugged in.
a
e
d
b
c
m
n
o
q
g fhj ikl
p
[Rear]
[Front]
