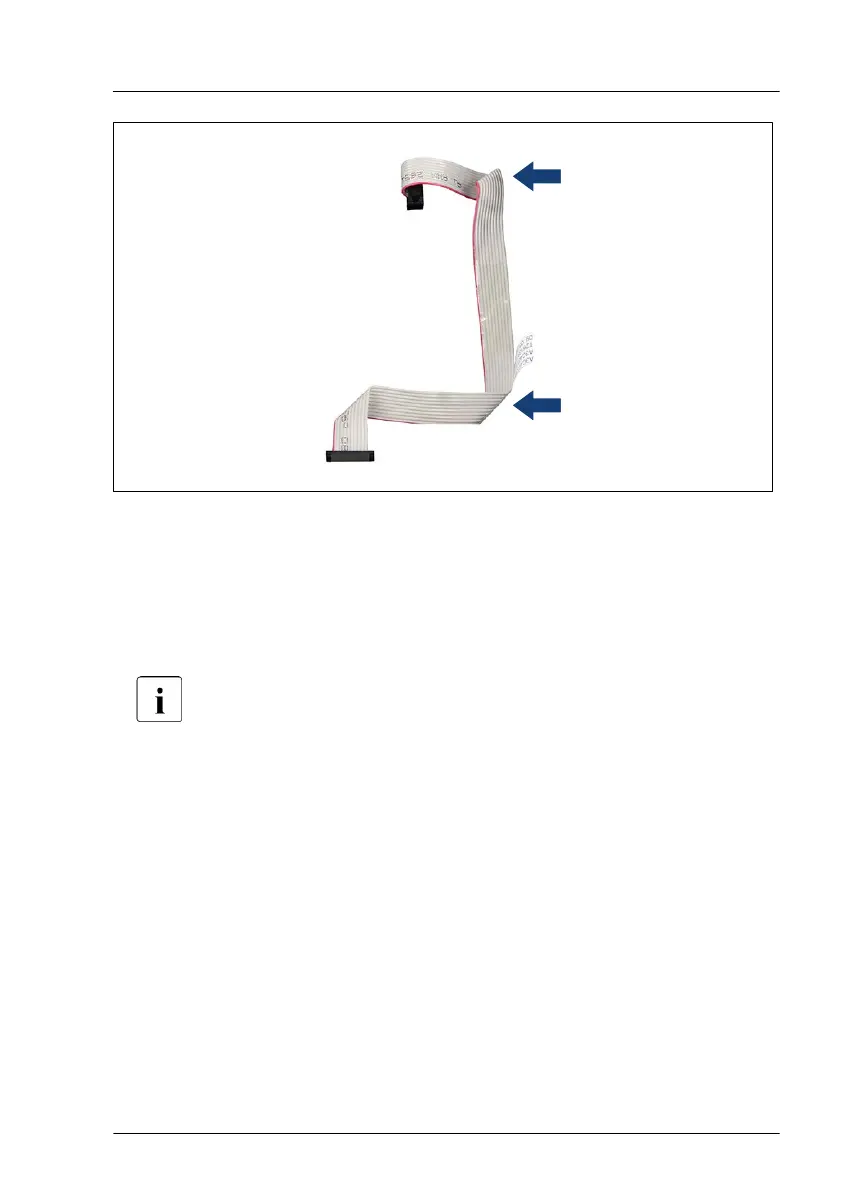

Figure 53: Folding the flat cable
▶
Fold the flat cable as shown.
▶
Install the power distribution board, see "Installing the new power
distribution board".
▶
Install the PSU, see "Installing a hot-plug PSU" on page
105.
The PSU must be installed in the first bay (left bay seen from rear
side). The dummy cover must be installed in the second bay.
▶
Install the dummy cover, see
"Installing the dummy cover" on page 112.
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 131

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
