Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Installing the front VGA board

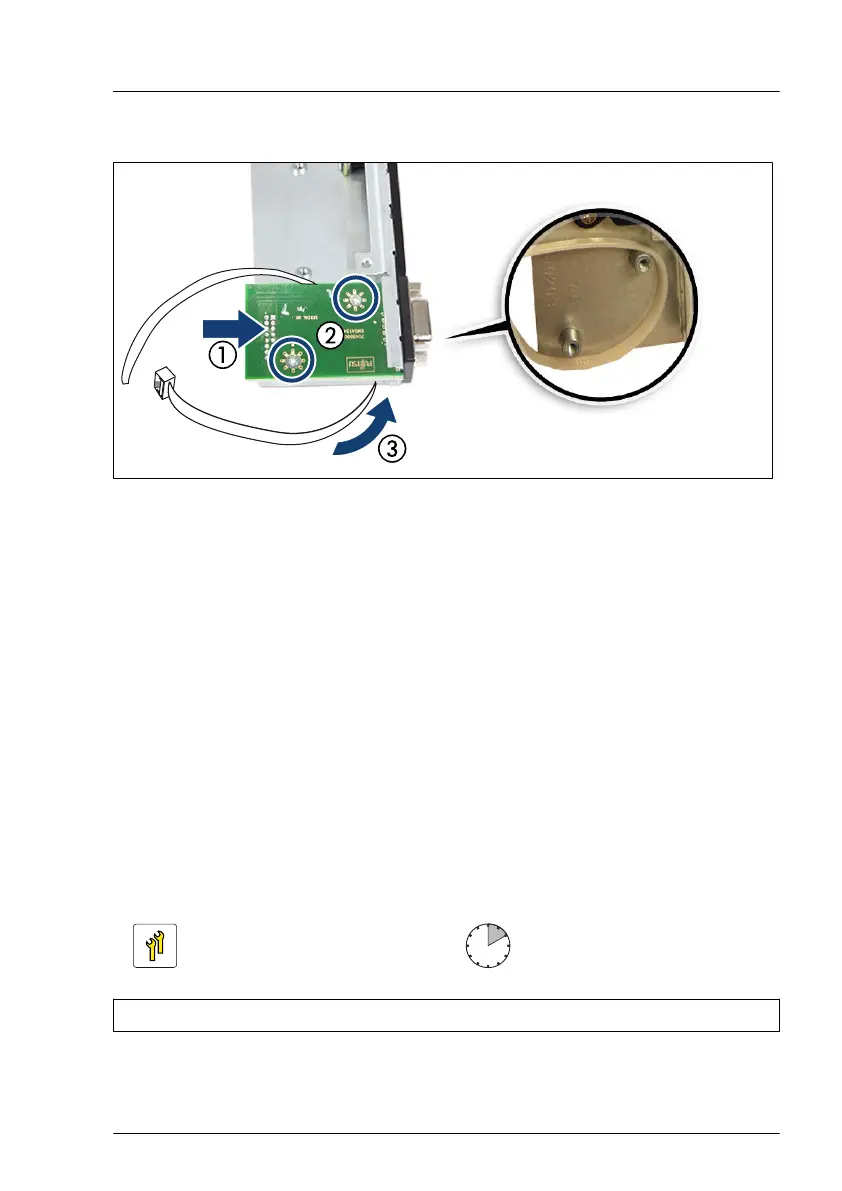

Figure 188: Installing the front VGA board
▶
Push the front VGA connector in the corresponding recess (1) and fasten
the front VGA board with two screws (2).
▶
Route the cable tie under the front VGA board (3).
Concluding steps
▶
"Installing the front panel module" on page
271
.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
13.4.2 Removing the front VGA board
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Front panel
RX1330 M4 Upgrade and Maintenance Manual 275
