Expansion cards and BBU
8.1.2 General instructions

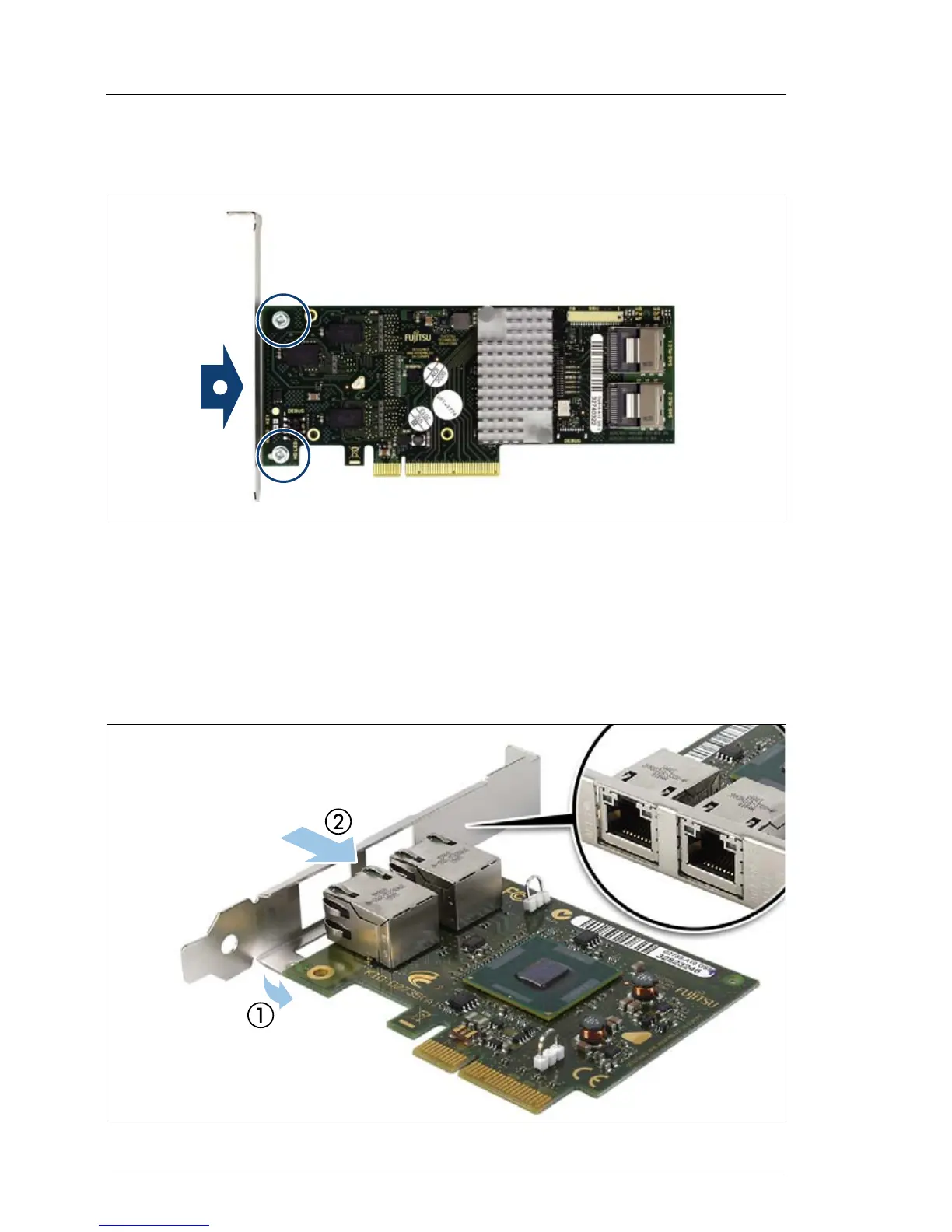

Figure 53: Mounting expansion card slot brackets
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
8.1.3 Network adapter D2735
/
