146 Maintenance Manual RX900 S1
Expansion cards and BBU
8.6.8 Inserting the expansion card in the slot

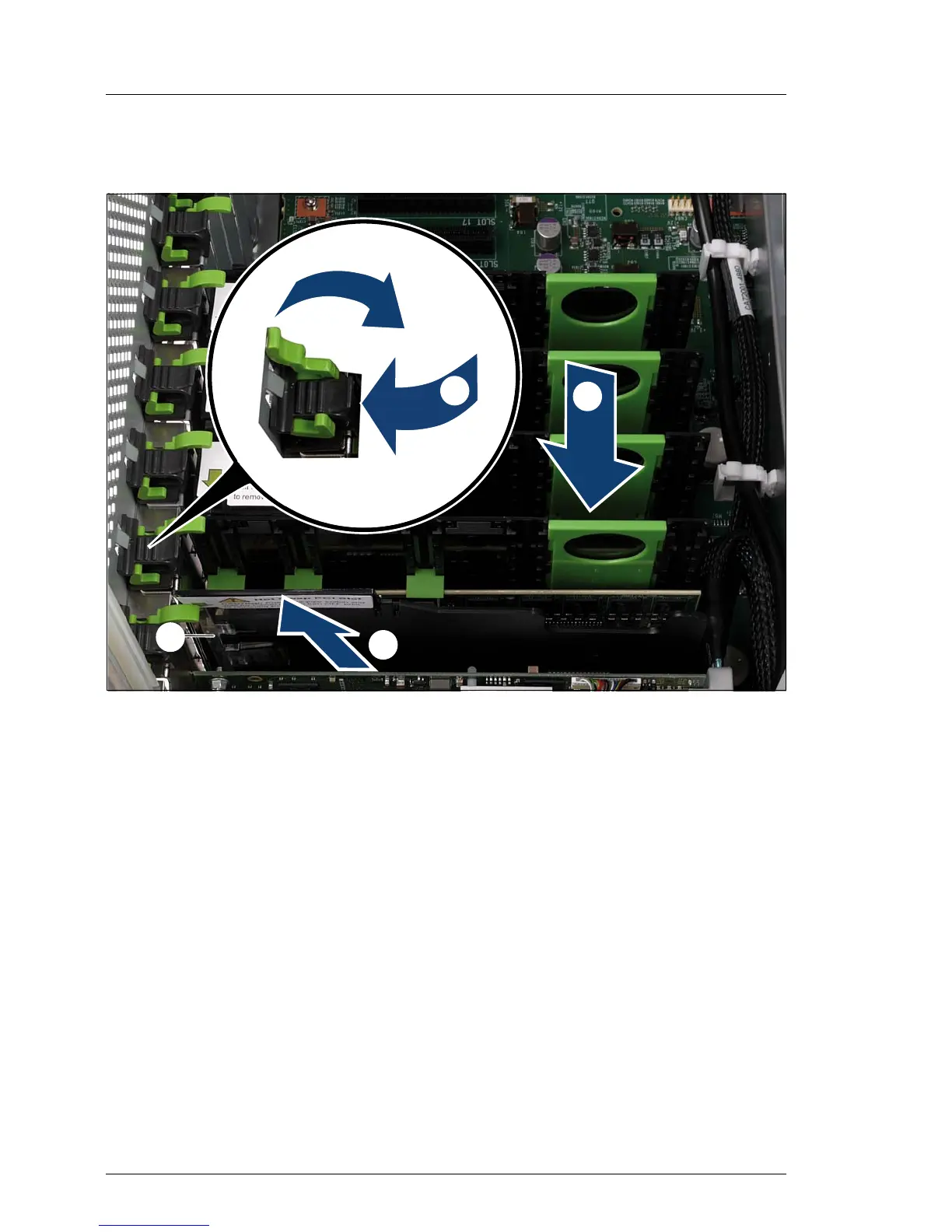

Figure 81: Inserting the expansion card in the slot
Ê Carefully insert the removal tool together with the expansion card in the slot
(1).
Ê Insert the slot lock (2) and relock the slot (3).
Ê Close the hot-plug slot (4).
Ê If applicable, connect the cables on the expansion card.
/
0
1
2
C
A
