RX900 S1 Maintenance Manual 321
Cables
15.4.8 Removing the baseboard

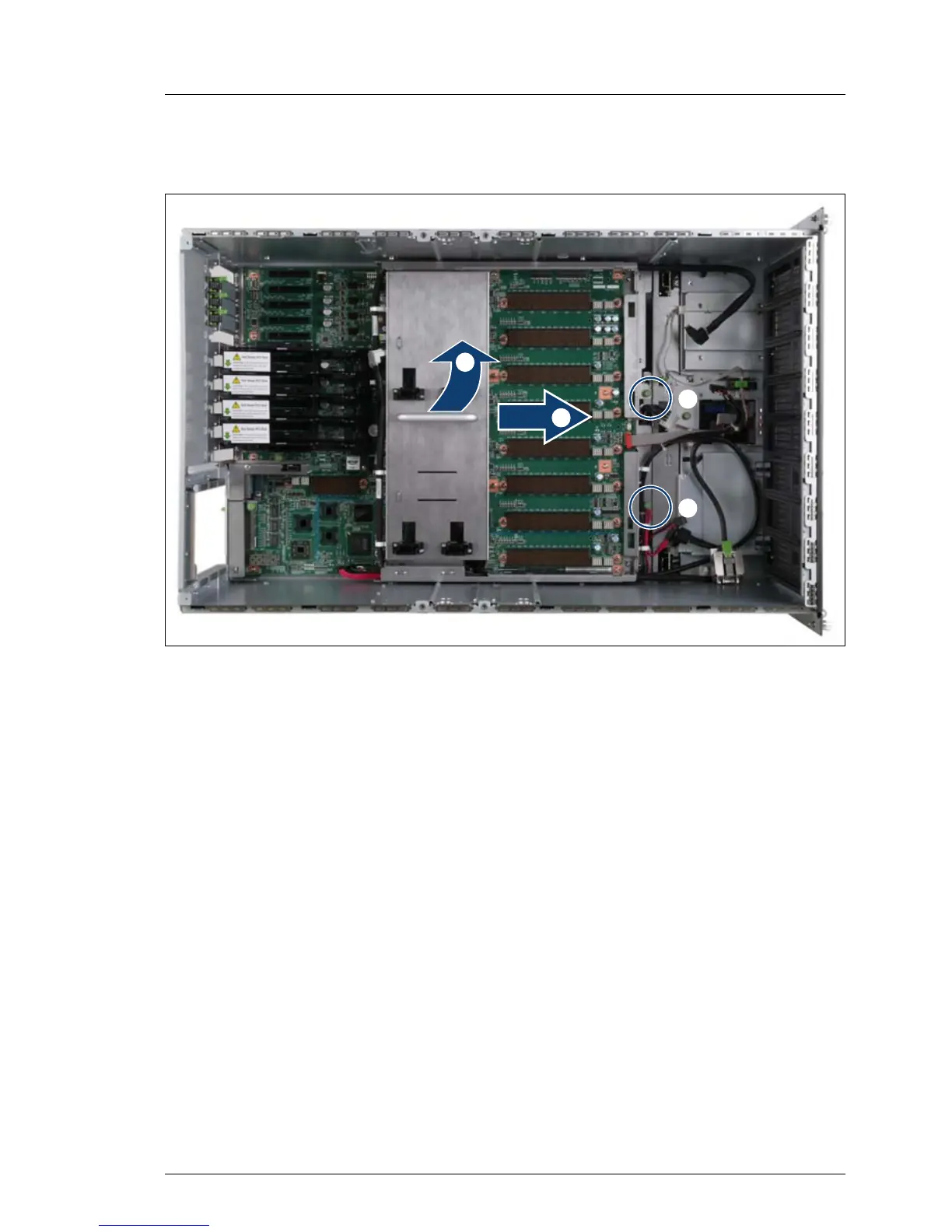

Figure 211: Removing the baseboard
Ê Loosen the captive screws (1).
Ê Slide the baseboard approximately 1 cm in the direction of the arrow (2).
V CAUTION!
Make sure that you have removed all power supply units before
removing the baseboard. Otherwise, the power supply units or the
power distribution board might be damaged.
Ê Carefully lift the baseboard out of the chassis by using the handle (3).
/
/
