RX900 S1 Maintenance Manual 241
Front panel and external connectors
12.3.4 Installing the USB board

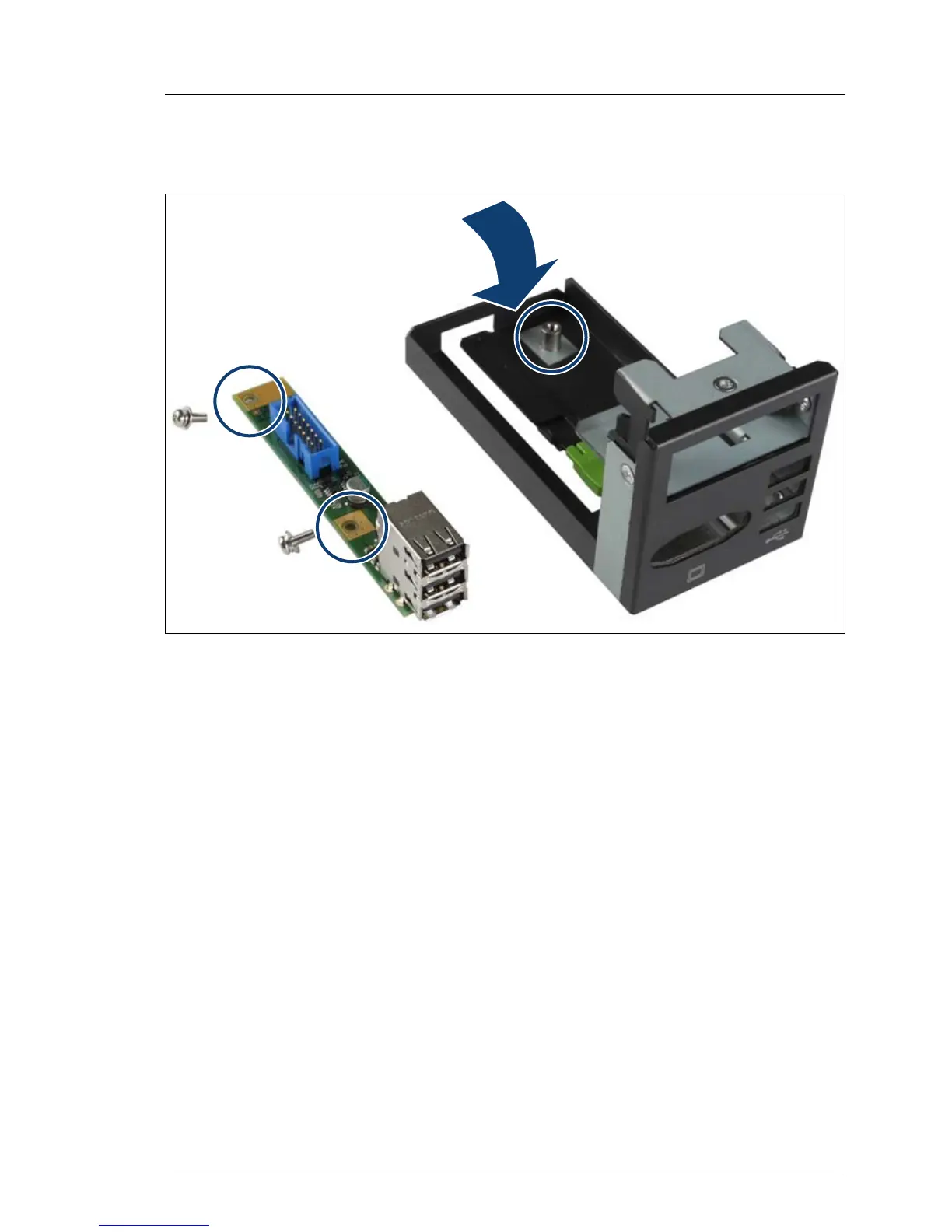

Figure 147: Installing the USB board in the front panel module
Ê Insert the USB board into the front panel module.
Ê Fasten both screws (see circles).
12.3.5 Completing the task
Ê Perform the following procedures to complete the task:
1. "Inserting the front panel module" on page 237
2. "Installing the control panel" on page 232
3. "Inserting the CPUMEMR in the slot" on page 186
4. "Closing the server" on page 47
5. "Mounting the server in the rack" on page 49
6. "Bringing the server back to operation" on page 51
7. "Closing the rack door" on page 51
