Fujitsu PRIMERGY RX900 S1 - Removing the Heat Sink

208 Maintenance Manual RX900 S1
Processors
10.2.3 Removing the heat sink

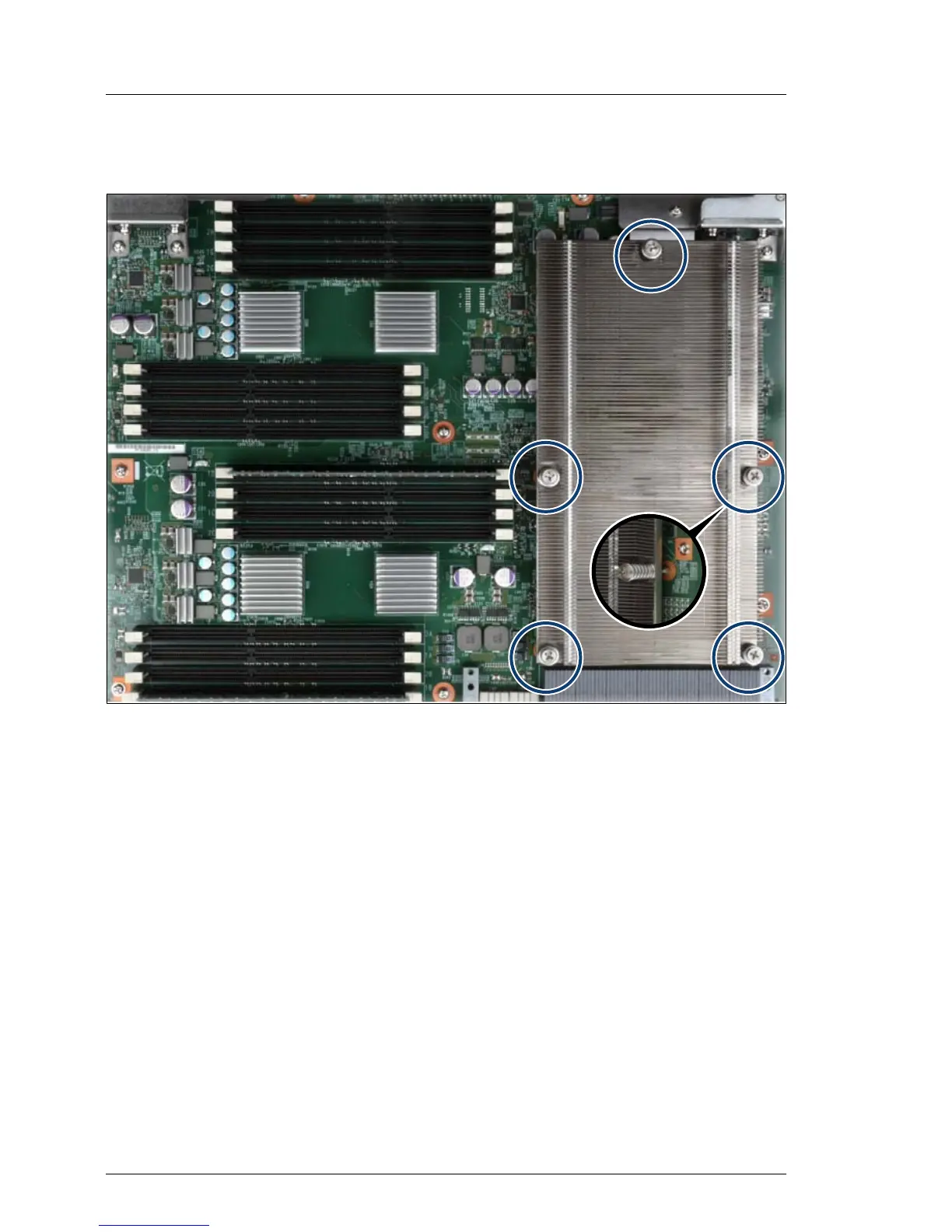

Figure 122: Removing the heat sink
Ê Loosen the captive screws of the heat sink alternately until they are fully
released.
Ê Loosen the heat sink by turning it back and forth and then lift it out.
