160 Maintenance Manual RX900 S1
Expansion cards and BBU
Ê Press the green button (1).
Ê Lift the handle (2) to disconnect the PCI Riser (PCIR) from the baseboard.
Ê Pull the PCIR up and out by using the handle (3).
8.9.4 Removing the expansion card from the slot

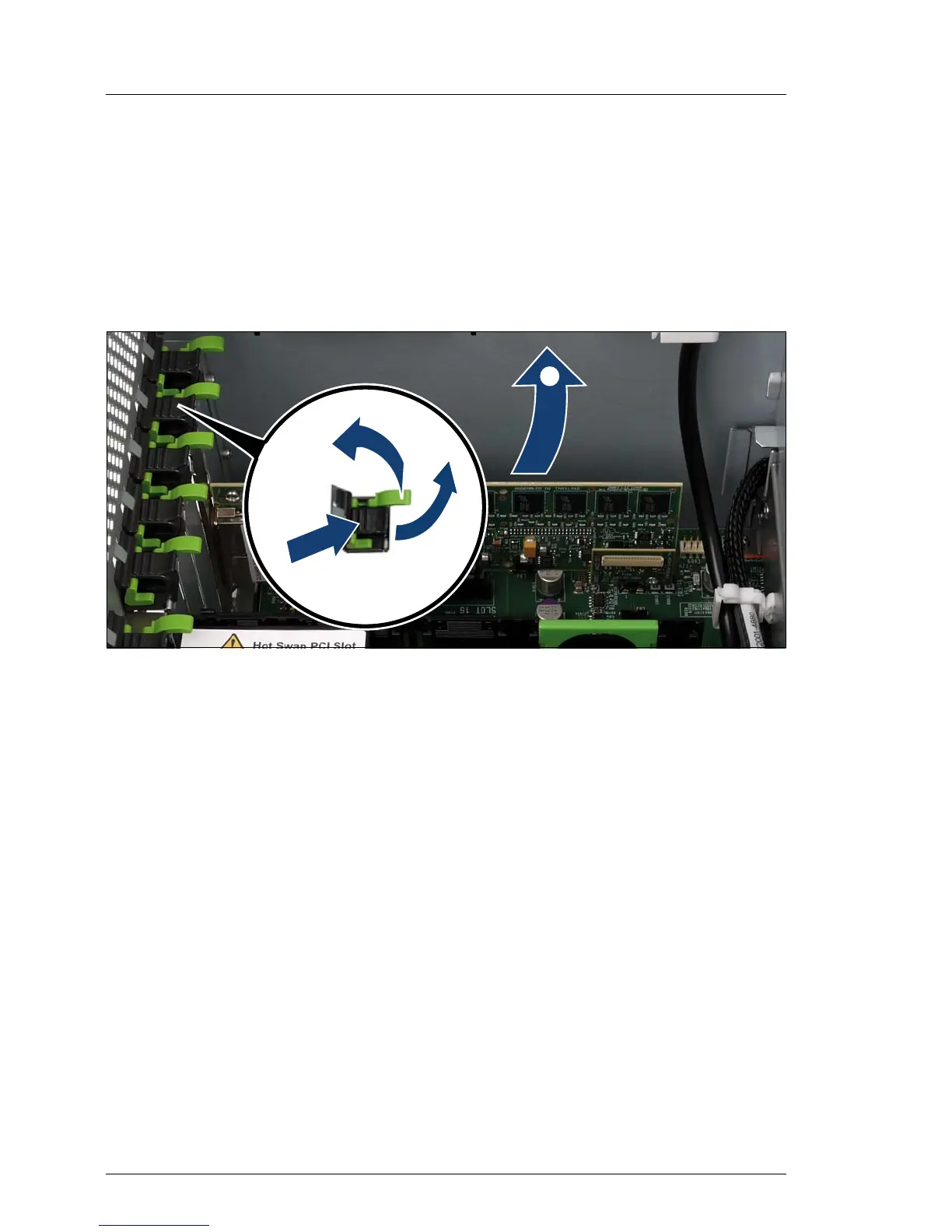

Figure 91: Removing the expansion card from the slot
Ê If applicable, remove the cables from the expansion card.
Remove the slot lock by pulling the green handle upward (1), pushing the
plastic part down (2), and lifting the slot lock (3).
Ê Carefully pull the expansion card out of the lot (4).
2
/
0
1
