308
Maintenance Manual
RX900
S1
Cables
15.3.3
Remov
ing the chas
sis ID boar
d

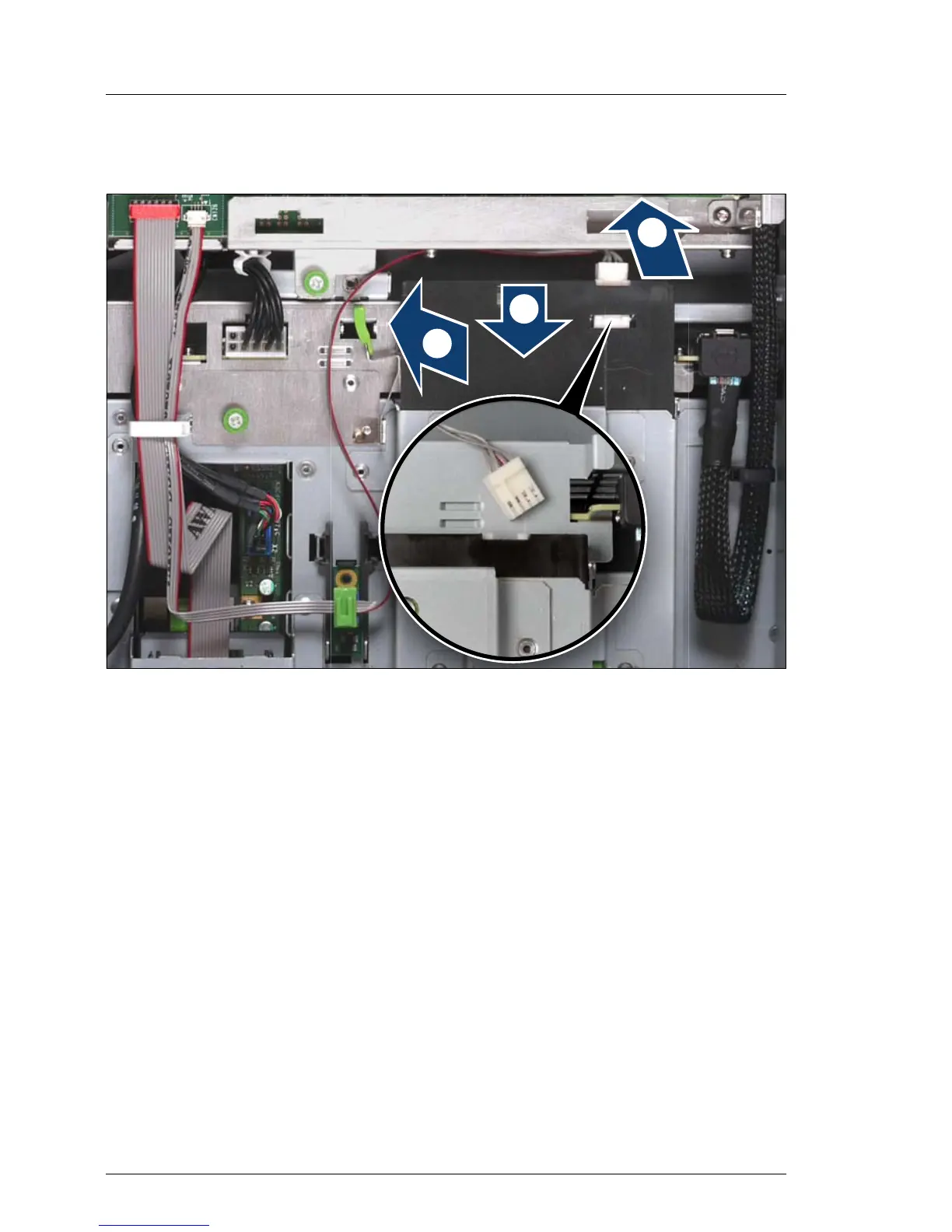

Figure 198: Removing t
he chassis ID board
cable f
rom the local ser
vice displa
y
Ê
Unlock the l
ocal ser
vice displa
y (1)
.
Ê
Slide the local service displa
y outward so that y
ou can disconnect the
chassis ID board cab
le (2).
Ê
Disconnect the chassis ID board cable (3).
/
0
1
307
309
