8.7.4 Removing the slot cover

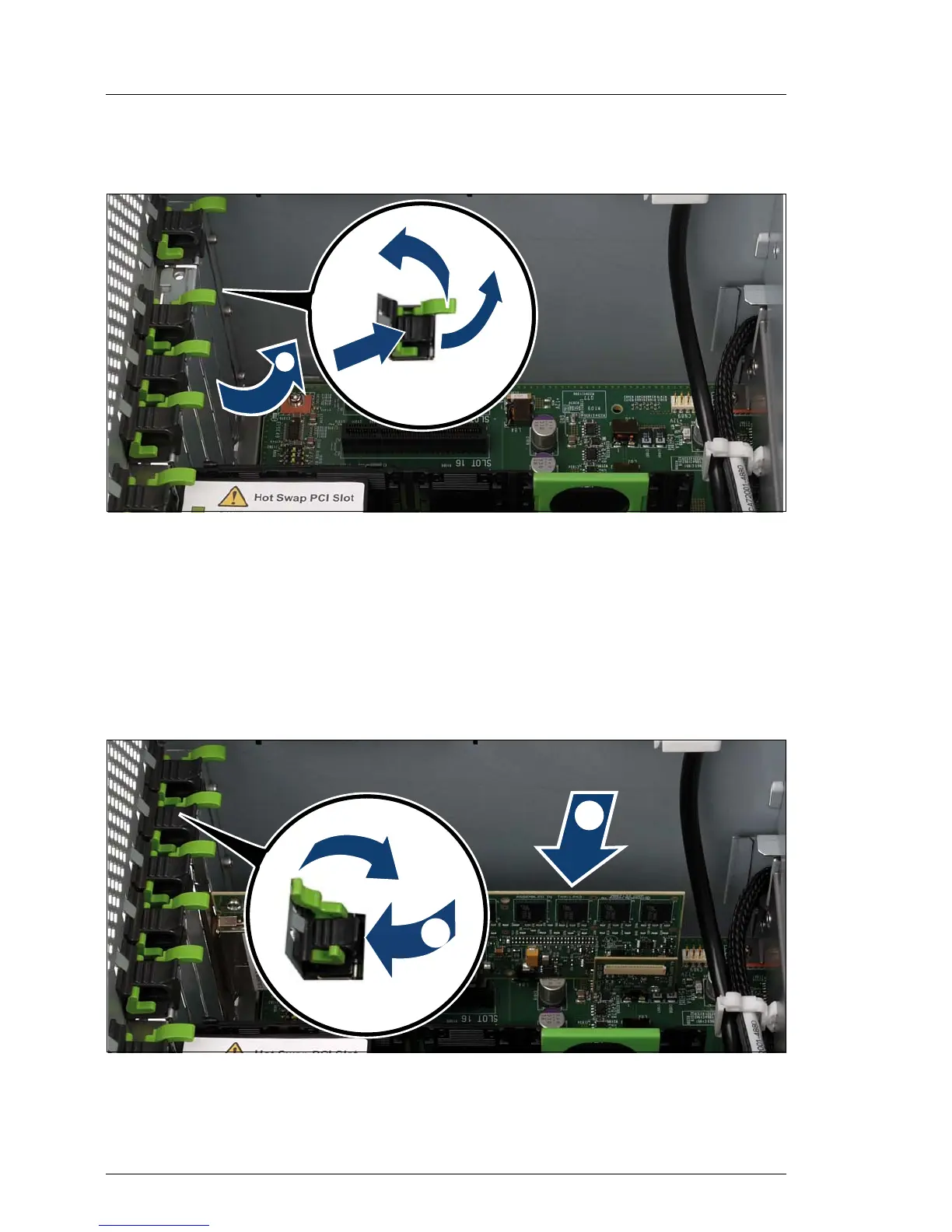

Figure 83: Removing the slot cover
Ê Remove the slot lock by pulling the green handle upward (1), pushing the
plastic part down (2) and lifting the slot lock (3).
Ê Remove the slot cover (4).
8.7.5 Inserting the expansion card in the slot
Figure 84: Inserting the expansion card in the slot
/
