RX900 S1 Maintenance Manual 303
Cables

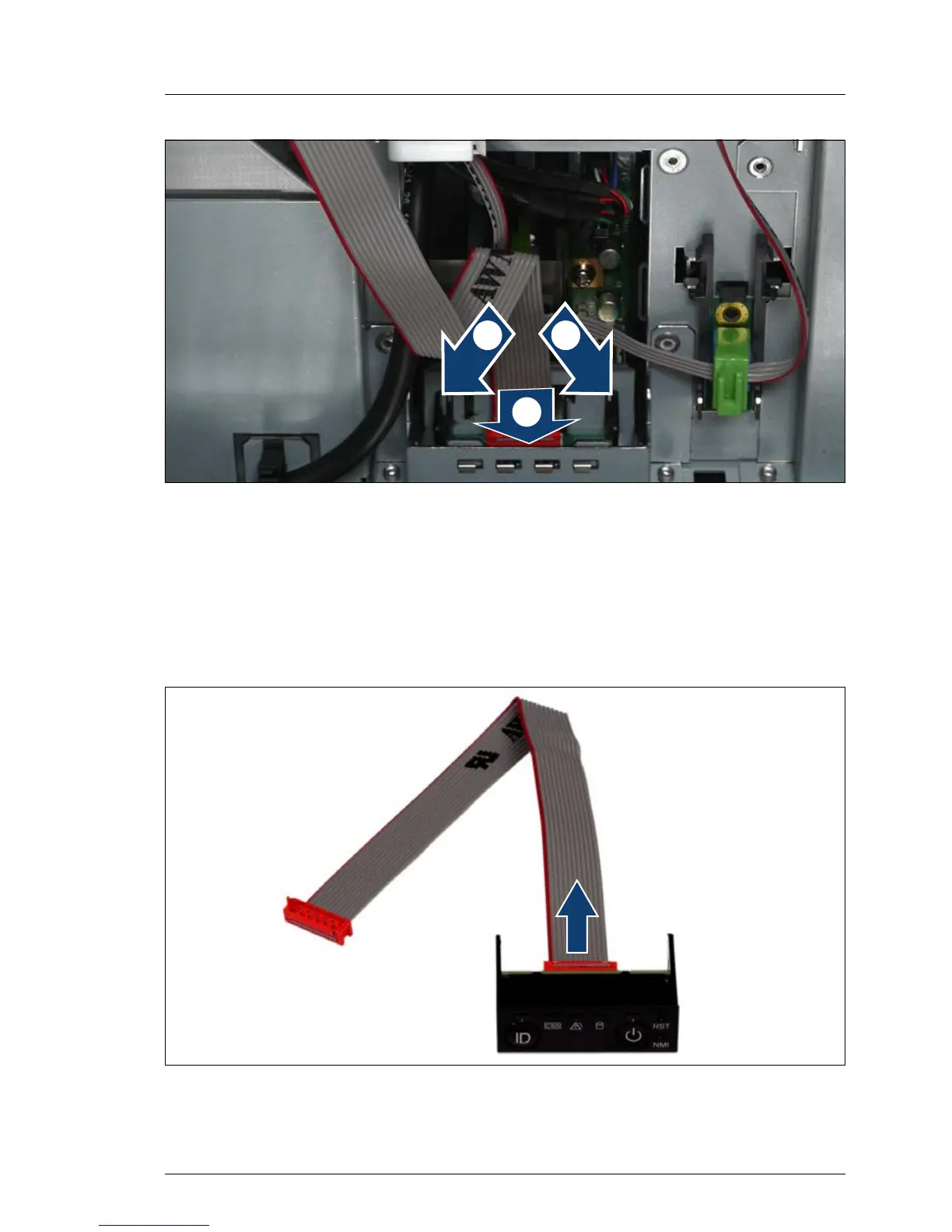

Figure 193: Removing the control panel
Ê Press the plastic tongues slightly outward as indicated by the arrows (1).
Ê Push the control panel outward (2).
15.2.4 Disconnecting the control panel cable
Figure 194: Disconnecting the control panel cable from the control panel
Ê Disconnect the control panel cable from the control panel.
/ /
