Fujitsu PRIMERGY RX900 S1 - Opening the Cable Guides

RX900 S1 Maintenance Manual 341
Cables
15.5.9 Opening the cable guides
For the SAS cable, the SATA cable, the front video connector cable, or the
front USB cable

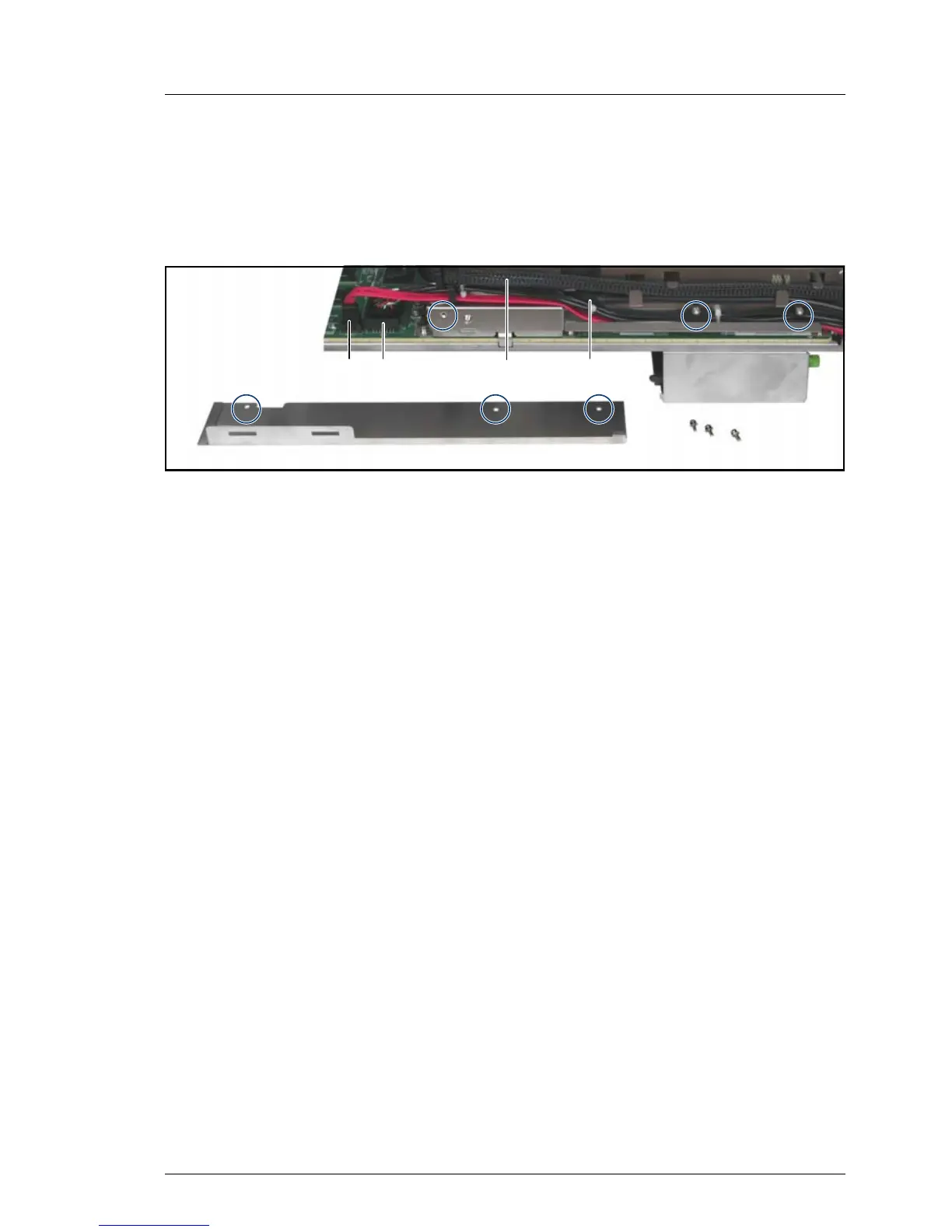

Figure 228: Opening the front connectors cable guide
Ê Remove the screws (see circles).
Ê Open the cable guide.
Ê Select the cable to be removed:
– Front USB cable (1)
– SAS backplane cable (2)
– Front video connector cable (3)
– Signalling cable to the optical drive (4)
Ê Open the corresponding cable clamps and remove the defective cable(s).
/
