RX900 S1 Maintenance Manual 123
Expansion cards and BBU

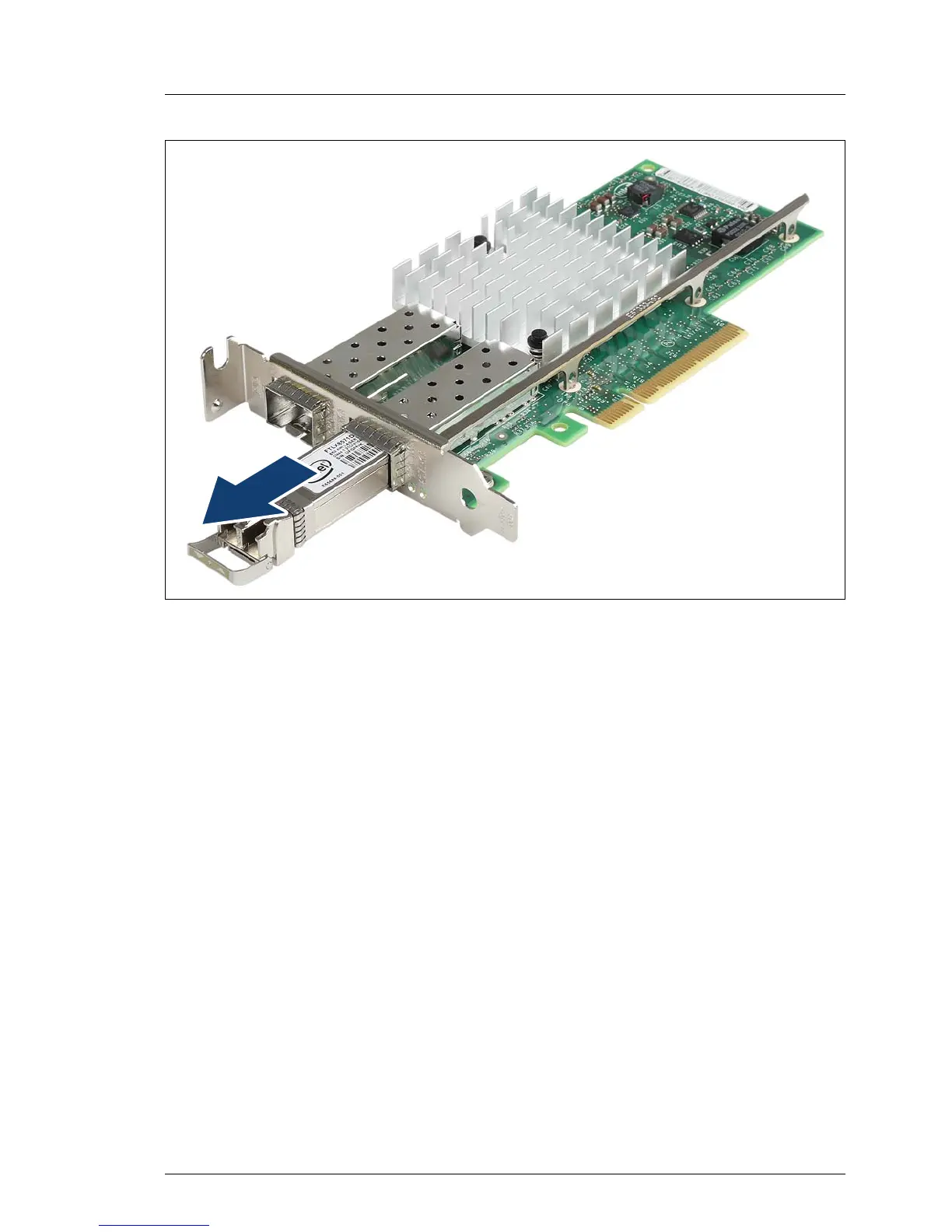

Figure 62: Removing the SFP+ transceiver
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Reattach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
8.3.3 Completing the task
Ê Perform the following procedure to complete the task:
– "Installing SFP+ transceiver modules" on page 114
