122 Maintenance Manual RX900 S1
Expansion cards and BBU

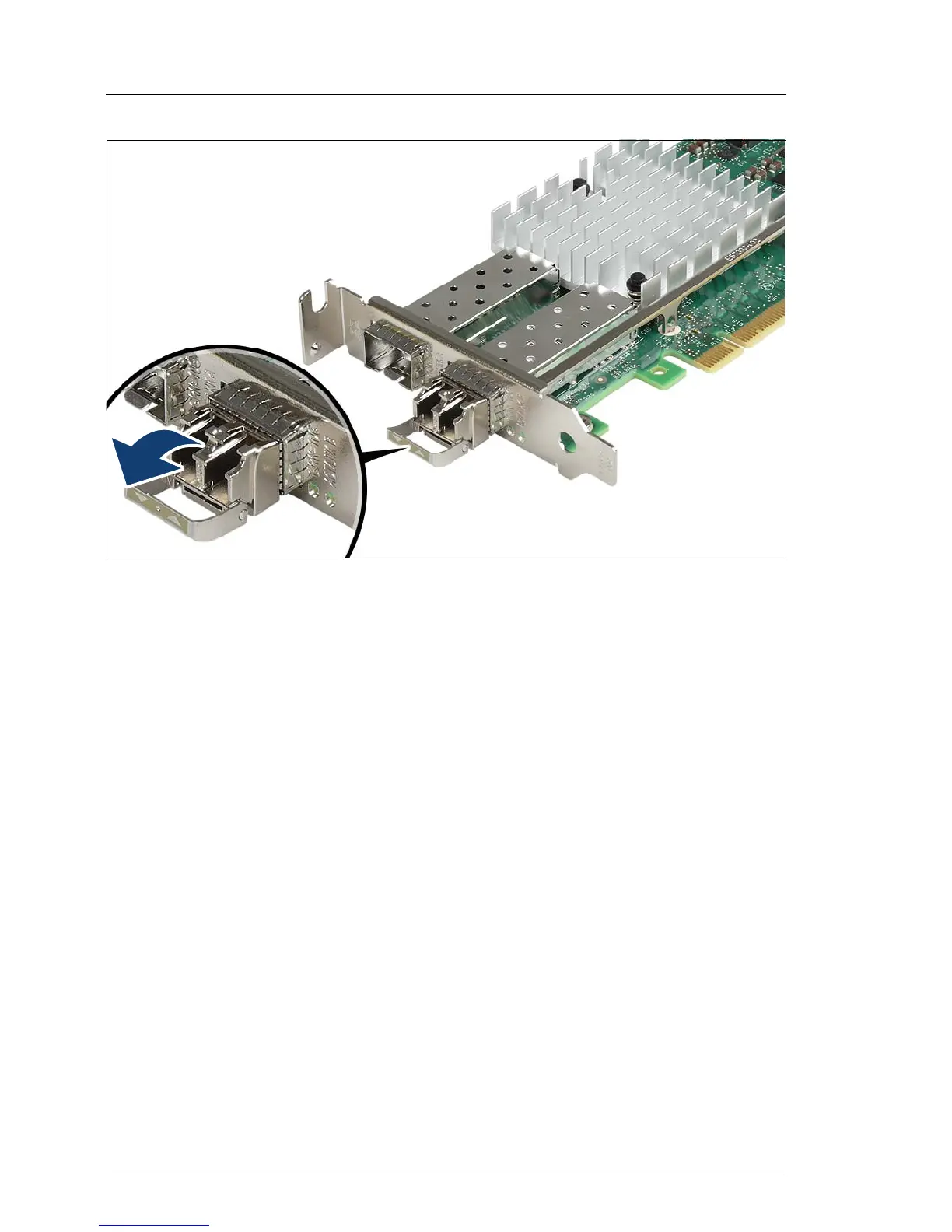

Figure 61: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
