RX900 S1
Maintenance Man
ual
209
Processors
10.2.4
Removing the pr
ocessor

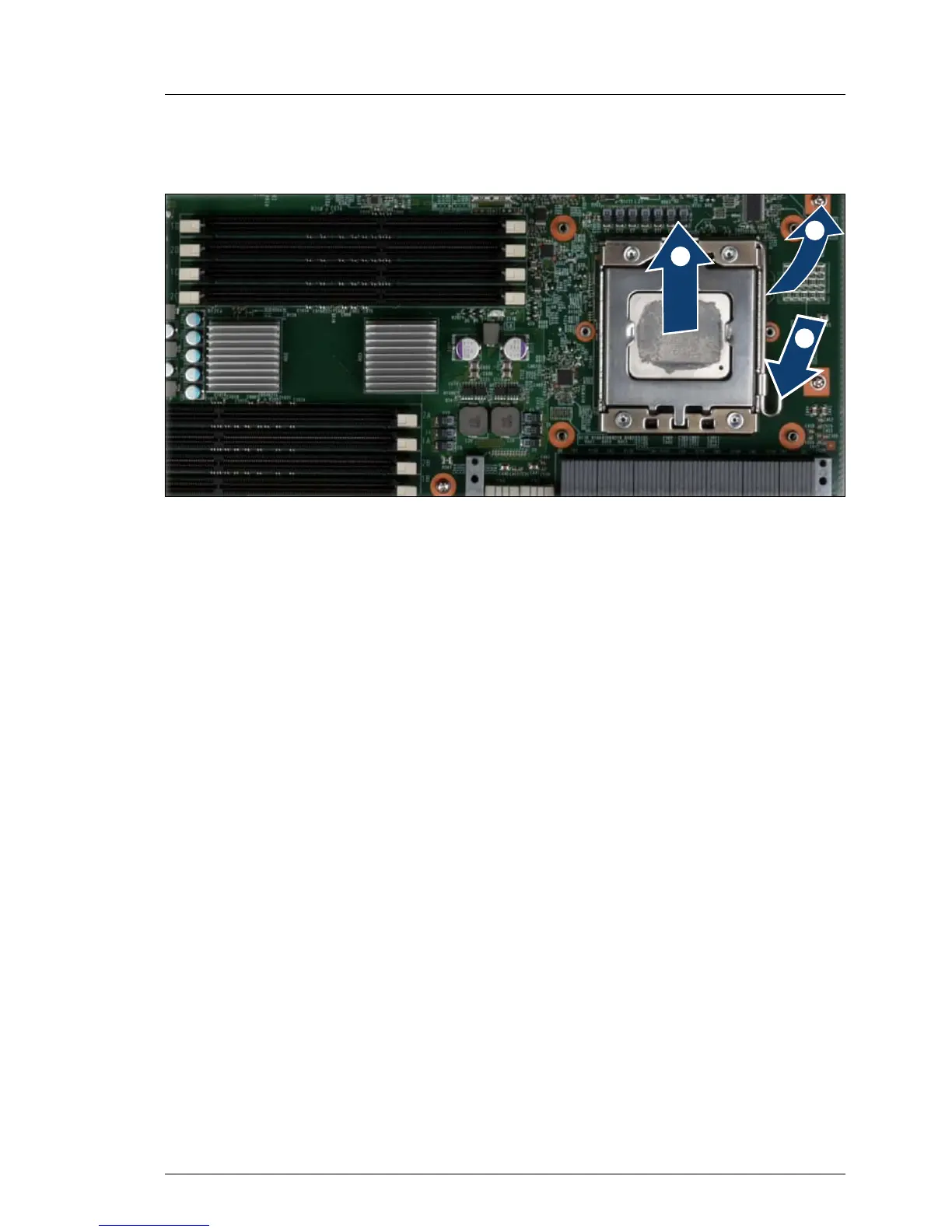

Figure 123: Re
moving the processor
Ê
Release the sock
et lev
er by pressing it do
wnward and outward (1).
Ê
Open the sock
et le
v
er and the processor holder (2).
Ê
Lift the installed processor carefully out of the so
ck
et (
3).
V
CA
U
TION!
Do not bend the spri
ng contacts of the processor soc
ket.
/
0
1
208
210
