RX900 S1
Maintenance Man
ual
255
Management
and diagno
stics modules

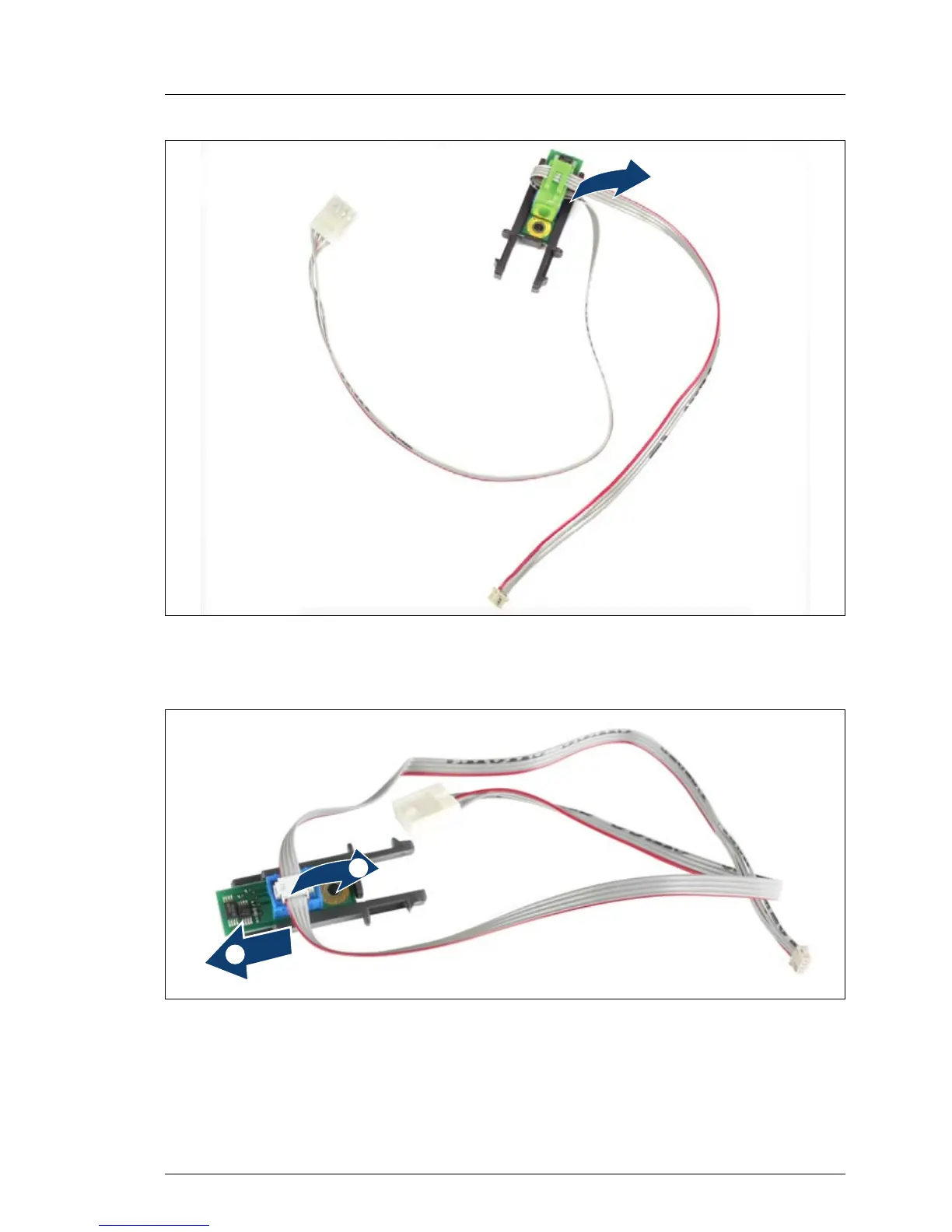

Figure 157: Re
moving the connector clamp
Ê
Remov
e the c
onnector clamp
.
Figure 158: Disconnect
ing the chass
is ID board cable
Ê
Disconnect the chassis ID board cable from the chassis ID board (1).
Ê
Slide the chassis ID board out of the holder (2).
/
0
254
256
