298 Maintenance Manual RX900 S1
Cables

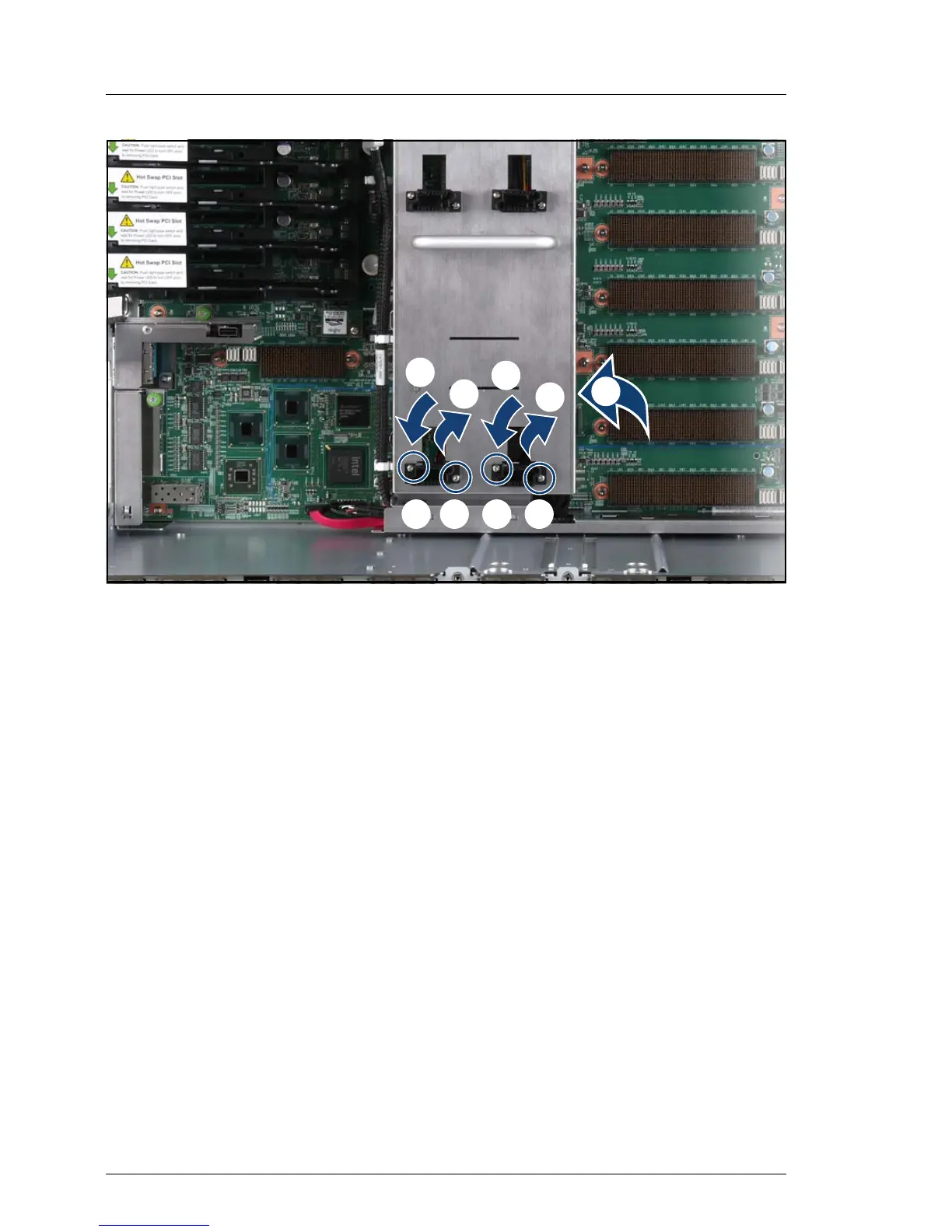

Figure 189: Installing the fan cable
Ê Pull the connectors underneath the fan base as indicated by the arrow (1).
Ê Slide each connector through the cutout of the fan base (2) and rotate it by
90° (3).
Ê Fasten the screws and the plug washers of the fan connectors (4).
I Be careful while inserting the screws as the plug washers might fall
on the baseboard.
0
1
2
/
222
0
1
