Fujitsu PRIMERGY TX1310 M5

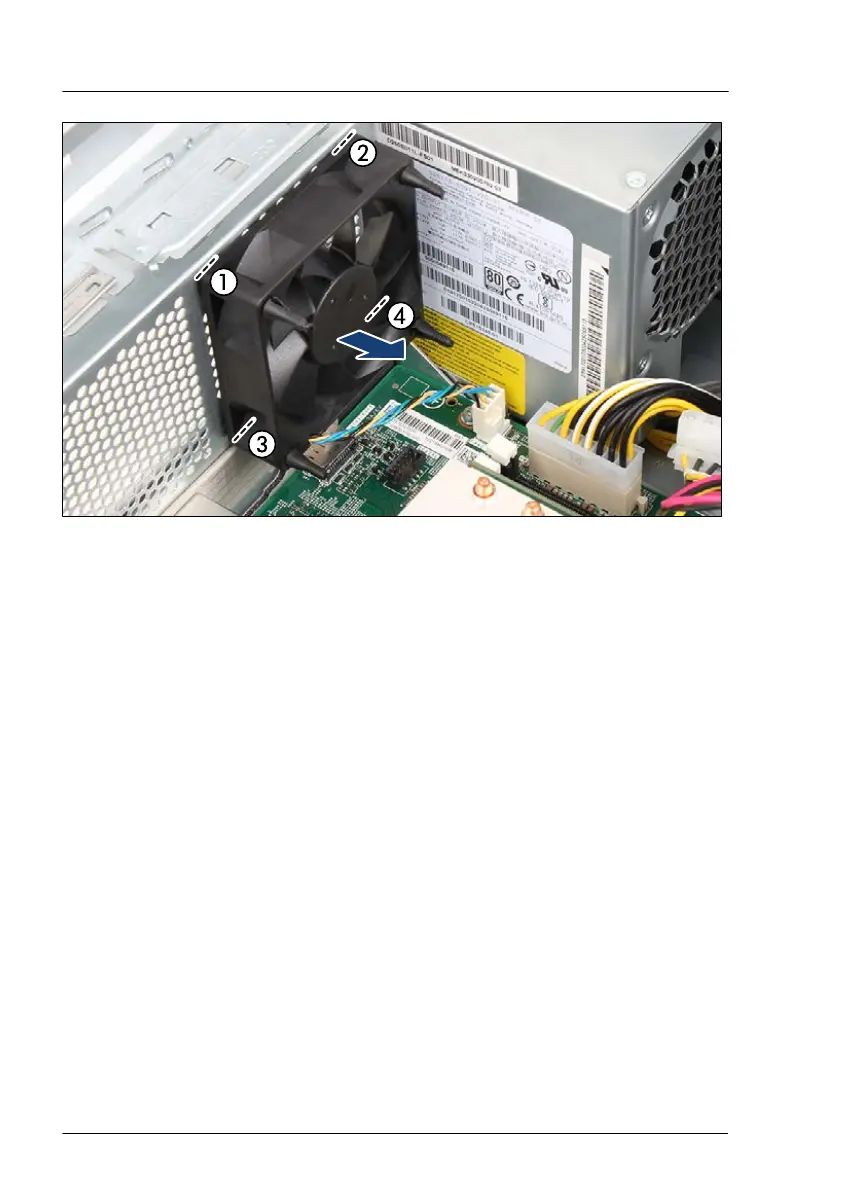

Figure 54: Removing the rear fan
▶
Extend the defective rear fan somewhat (see arrow).
▶
Cut through the four rubber rivets between the rear fan and the chassis
using a diagonal pliers in sequence 1-4.
Fans
100 Upgrade and Maintenance Manual TX1310 M5
