Fujitsu PRIMERGY TX1310 M5

Installing the new rear fan

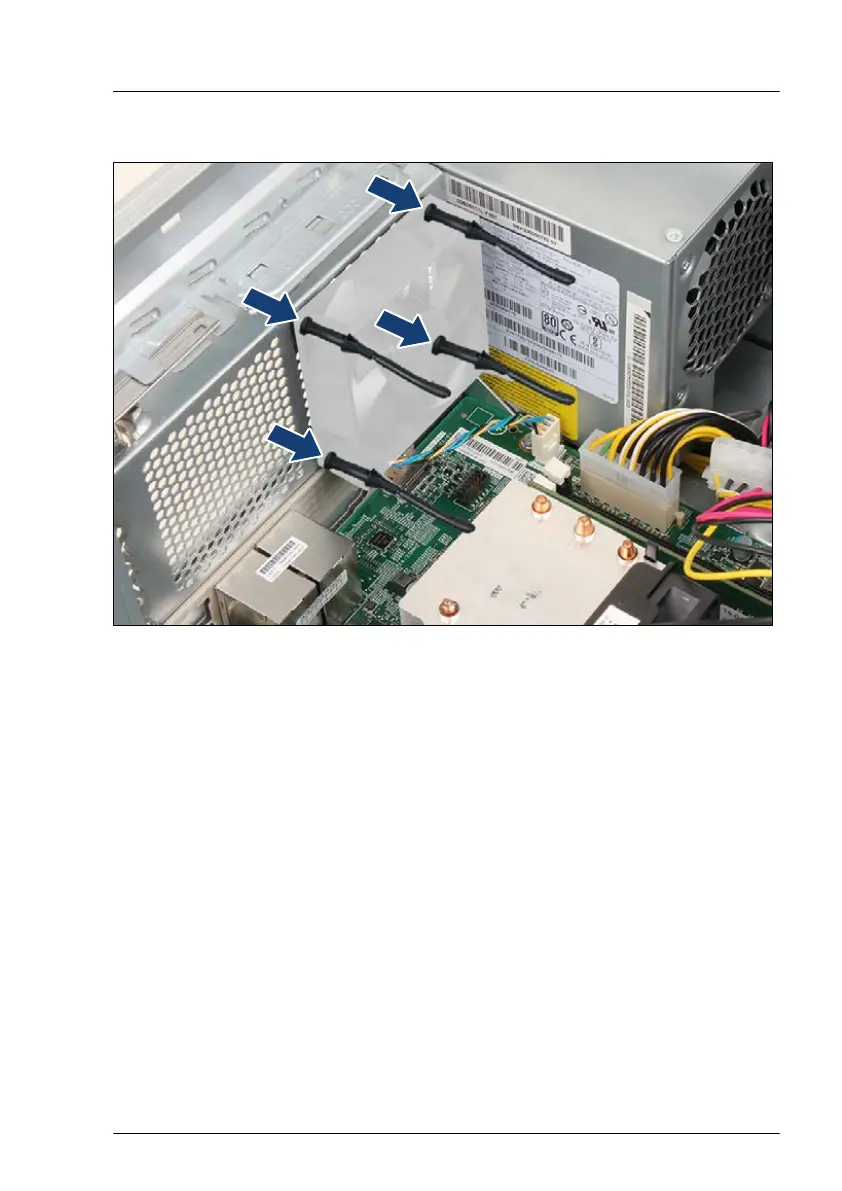

Figure 55: Inserting new rubber rivets
▶
Lead the four rubber rivets through the screw holes on the rear chassis wall.
▶
Pull tight until the sockets on the rubber rivets properly engage with the rear
chassis wall.
Fans
TX1310 M5 Upgrade and Maintenance Manual 101
