Preliminary steps
▶
"Unlocking the server" on page 39
▶
"Removing the bay cover" on page
40
▶
"Shutting down the server" on page 41
▶
"Disconnecting the power cord" on page 42.
▶
"Getting access to the component" on page 43.
▶
"Removing the top HDD cage" on page 46.
Removing the defective rear fan
▶
Remove the heat sink, see "Removing the heat sink" on page 136.

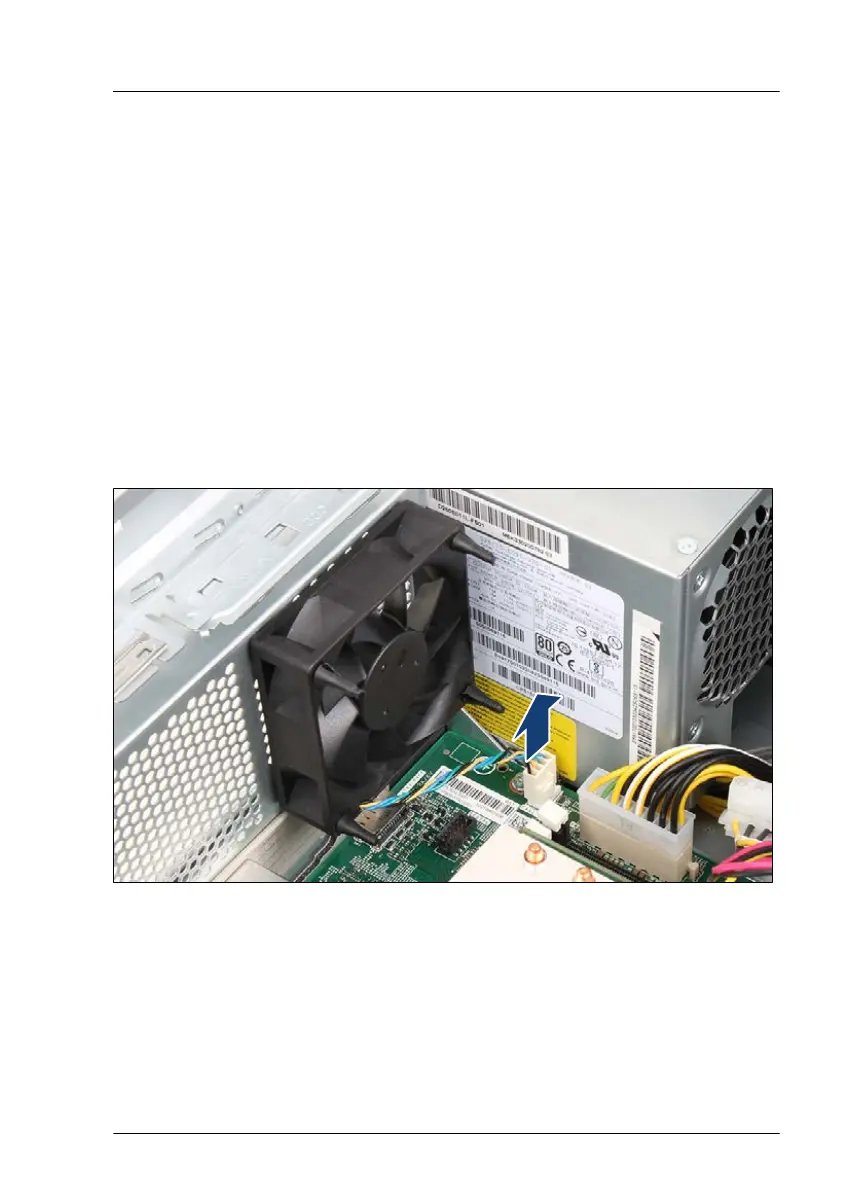

Figure 53: Disconnecting the rear fan cable
▶
Disconnect the rear fan cable from system board connector "Fan2 (SYS)".
Fans
TX1310 M5 Upgrade and Maintenance Manual 99
