Preparing the ODD
There are two fixation plates for accessible drives. You need one fixation
plate for every accessible drive to be installed.

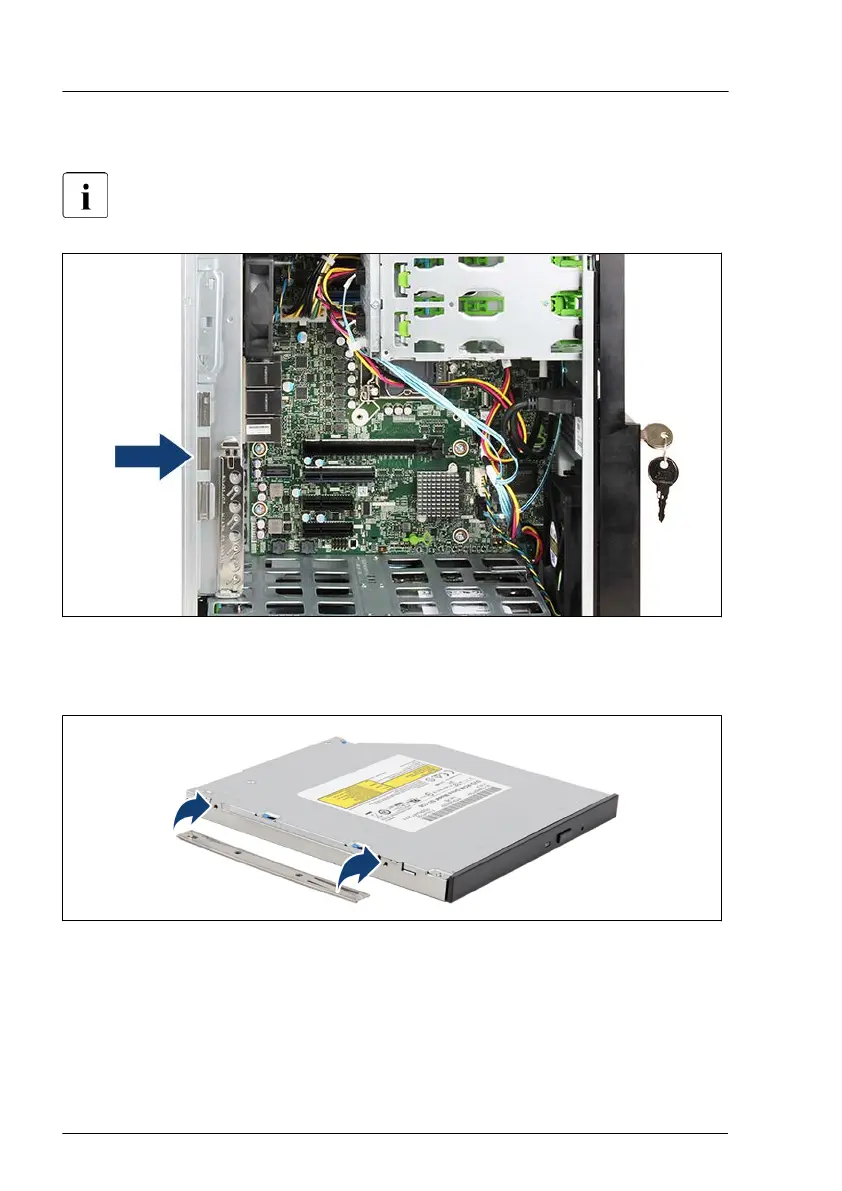

Figure 103: Removing the fixation plate from the chassis
▶
Unclip the fixation plate (see arrow).
Figure 104: Attaching the fixation plate to the ODD
▶
Align the two pins on the fixation plate with the screw holes in the ODD.
▶
Attach the fixation plate to the left side of the ODD.
Accessible drives
160 Upgrade and Maintenance Manual TX1310 M5
