Removing the defective HDD cable
▶
If applicable, remove HDD1 and HDD2, see
"Removing a 3.5-inch HDD" on
page 94
.
▶
Pull the system board tray out of the chassis, see
"Removing the defective
system board" on page 208
.

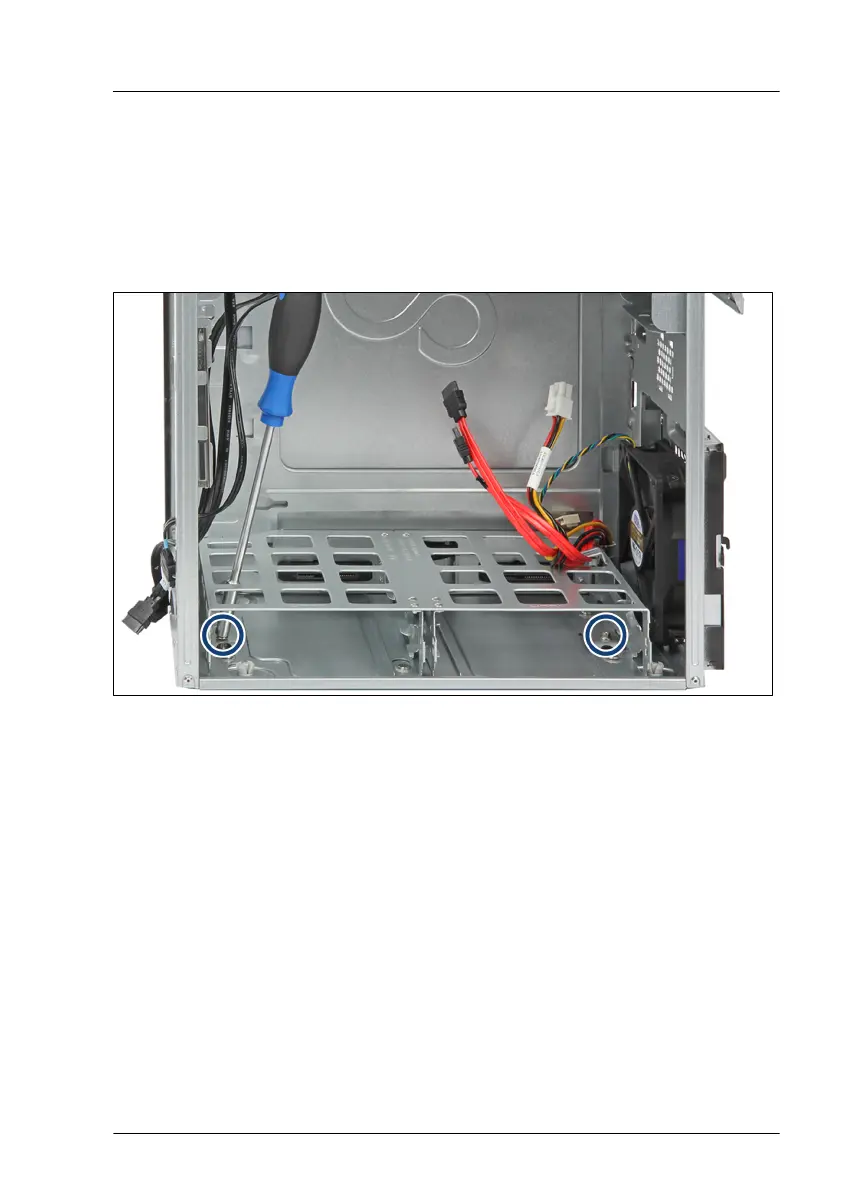

Figure 147: Removing the screws
▶
Remove the two screws (see circles).
Cables
TX1310 M5
Upgrade and Maintenance Manual
221
