Fujitsu PRIMERGY TX1310 M5 User Manual

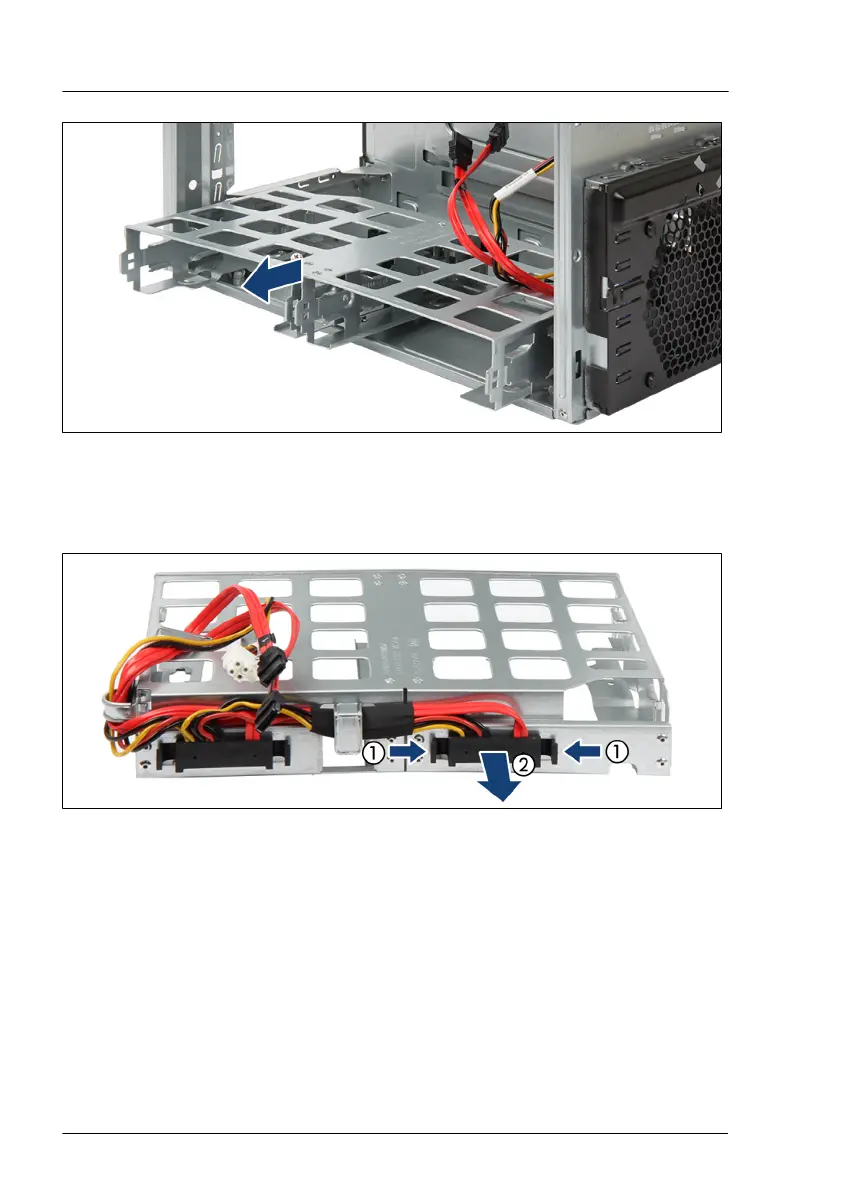

Figure 148: Removing the HDD cage bottom
▶
Pull the bottom HDD cage to the front as far as possible, lift it over the cant
and remove it.
Figure 149: Removing the defective cable
▶
Pinch the sides of the connector (1) and remove it from the bottom HDD
cage (2).
Cables
222 Upgrade and Maintenance Manual TX1310 M5
