System board
Air duct
Removing/installing the air duct

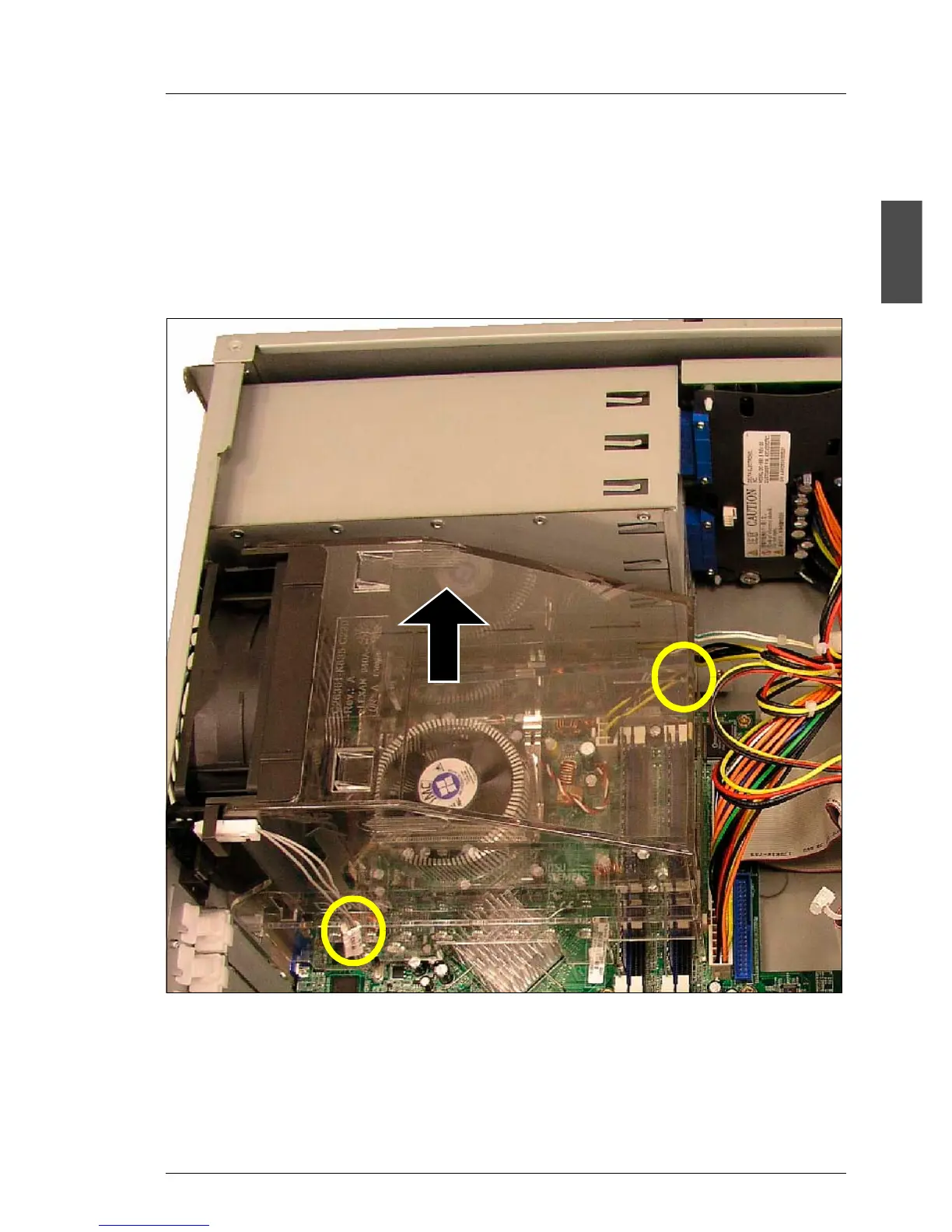

Ê Take out the air duct upwards.
Ê Reinstall the air duct. Make sure that the system fan cable and the power
supply cables fit into the recesses (see circles).
