Replacing the SATA backplane
The SATA backplane is mounted on the hard disk cage. It is not necessary to
remove the hard disk cage before replacing the SATA backplane.
Requirements
– server has been switched off
– power cords have been disconnected
– left side cover has been removed
– all SATA hard disk drives have been removed
Check if all hard disk drives are uniquely identified so that you can
reinsert them into their original bays.

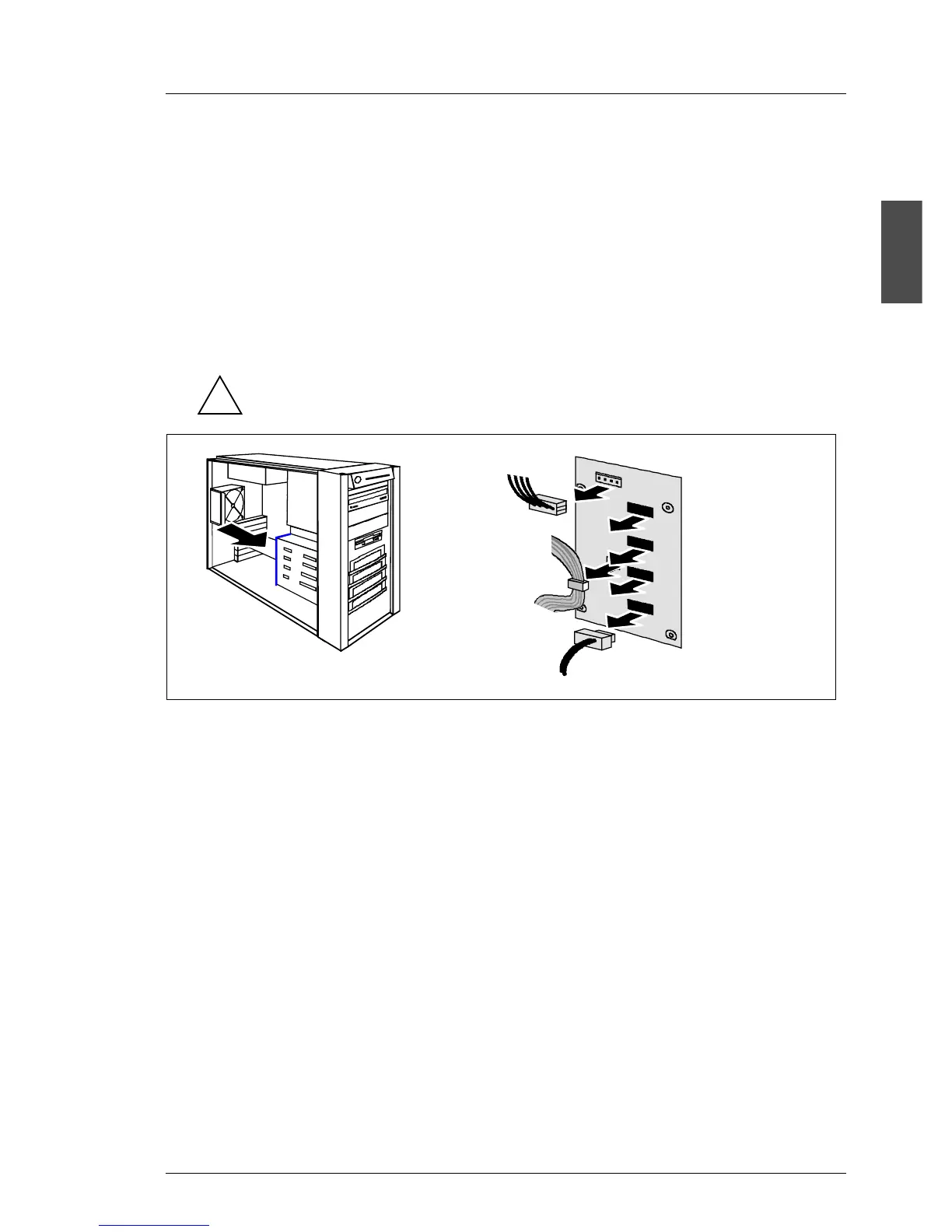

Ê Disconnect the power cable (1), the four SATA data cables (2), and the I2C
connector (3) from the SCSI backplane.
Ê Remove the four screws (two at each side) that fasten the SATA backplane
holder to the hard disk cage.
Ê Take the SATA backplane together with the holder out of the server. Be
carefully with the isolation foil.
Ê Press down the rear side of the body-bound rivets which fasten the SATA
backplane to the holder and lift the SATA backplane from the holder.
Installation of the new SATA backplane is performed in reverse order.
!
