U41057-J19-Z146-1-76 July 2004 02–TX150S2–25
Installation and initial operation Installation
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k02
Rack model
Some of the devices that you connect require special drivers. See the
documentation for the connected device.
Ê Connect the data cables at the server and peripherals.
Connecting the monitor to the line voltage
Ê Plug the power cord of the monitor into a properly grounded power outlet of
the main AC supply circuit.
The rated current for the monitor can be found on the technical data label
on the monitor.

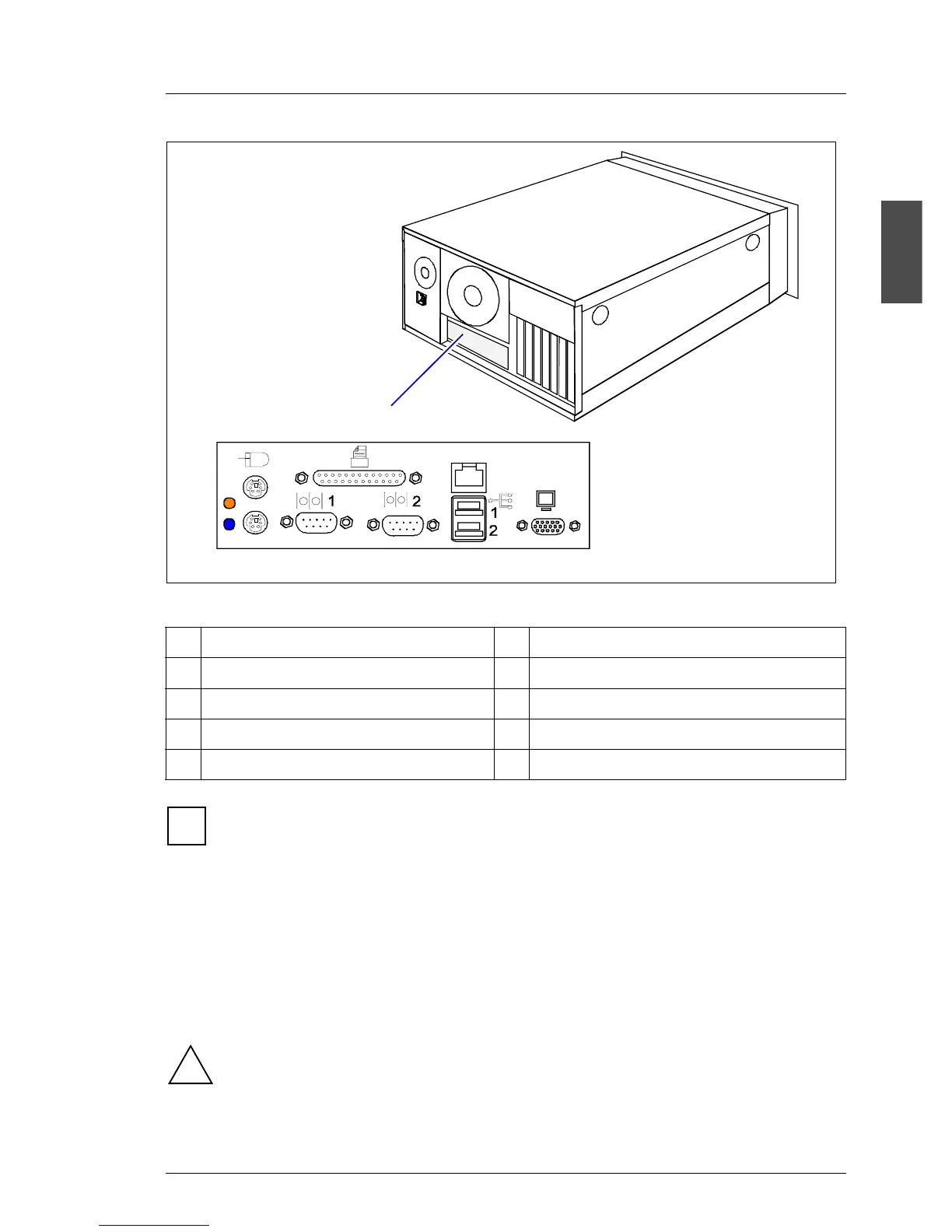

1 Mouse port (green) 6 Serial port COM2 (turquoise)
2 Parallel port (burgundy) 7 Serial port COM1 (turquoise)
3 LAN port 8 Keyboard port (purple)
4 Monitor port (blue) 9 LEDs
5 USB port 1 and 2 (black)
12
3
4
87
65
9
i
!
