02–TX150S2–130 July 2004 U41057-J19-Z146-1-76
Replacing the system fan Removal/installation routines
Replacing the system fan
Requirements
– server has been switched off
– power cords have been disconnected
– left side cover has been removed
– air duct has been removed

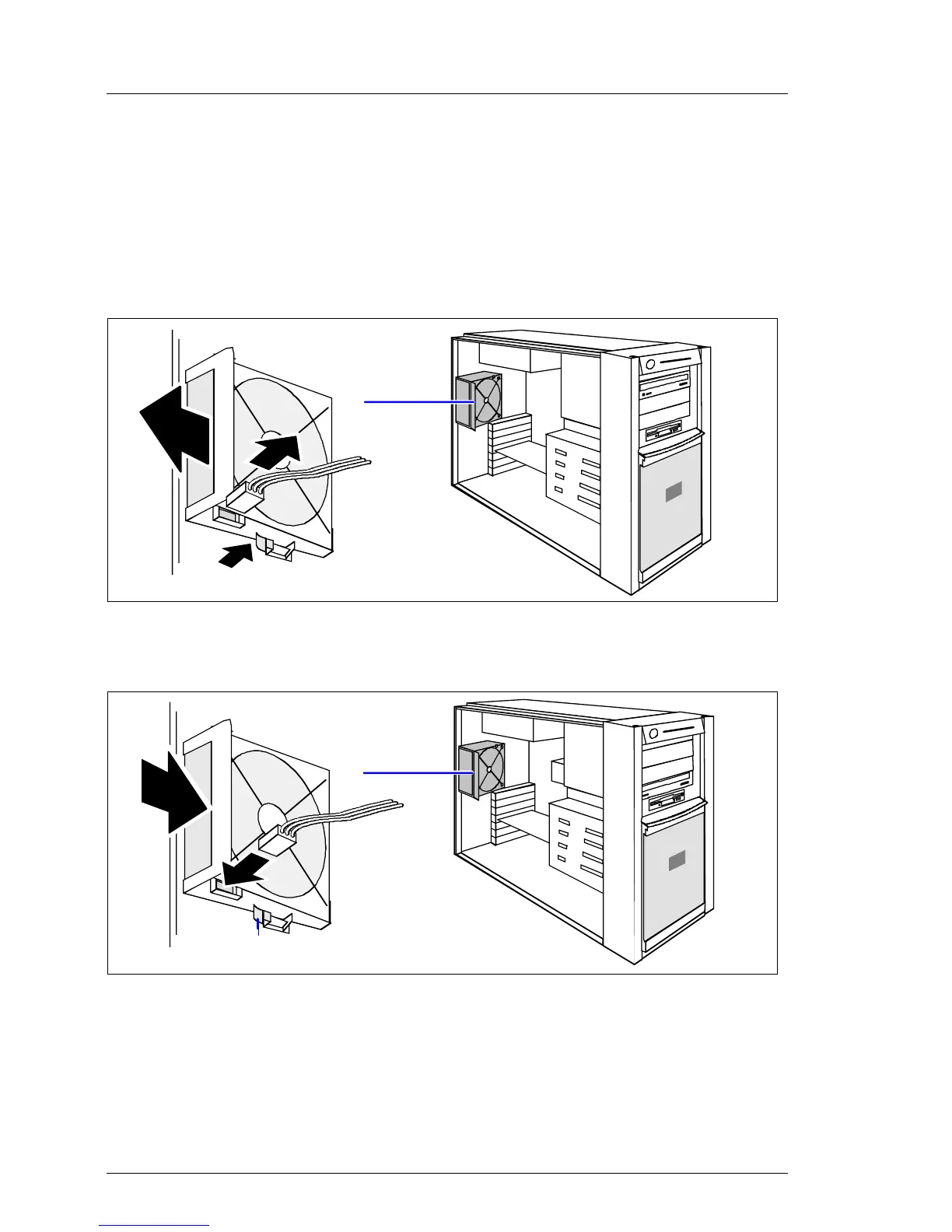

Ê Pull the cable off the fan (1).
Ê Press on the clip (2) from behind and remove the fan (3).
Ê Place the new fan in the bay (1). The proper fan position can best be judged
from the outside at the rear side of the server. When doing so, make sure the
fan clip (a) engages properly.
Ê Connect the cable to the fan (2).
1
3
2
a
1
2
