Installation Installation and initial operation
Connecting devices to the server
The ports for external devices are on the rear of the server. Which ports are
available on your server depend on the PCI boards installed.
You will find an additional USB port on the front side of the server.
The standard ports are indicated by symbols and by color coding for the
connectors.

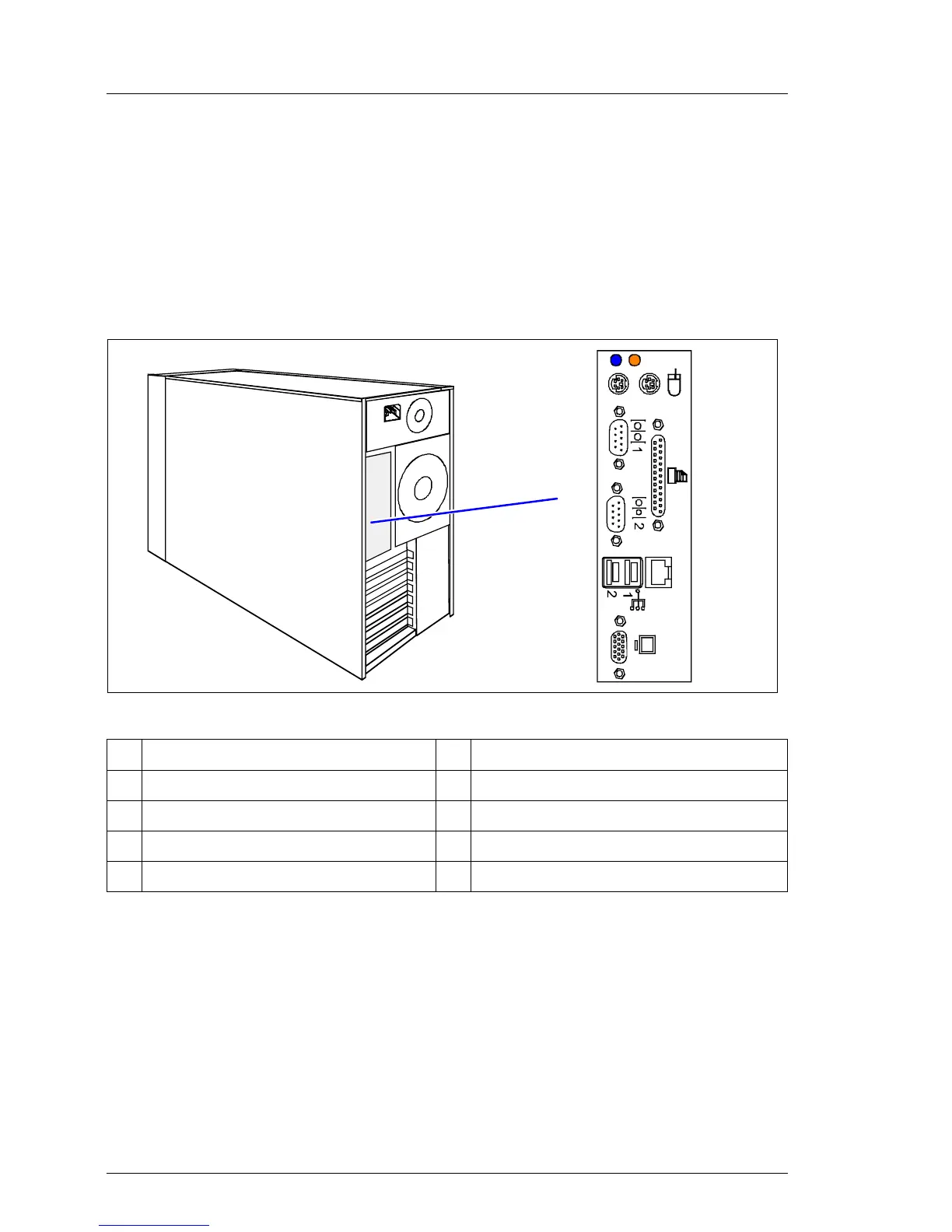

Floorstand model
1 Mouse port (green) 6 Serial port COM2 (turquoise)
2 Parallel port (burgundy) 7 Serial port COM1 (turquoise)
3 LAN port 8 Keyboard port (purple)
4 Monitor port (blue) 9 LEDs
5 USB port 1 and 2 (black)
9
1
2
3
8
7
6
5
4
