Accessible drives and operating panel Removal/installation routines
Installing an accessible 5.25" drive

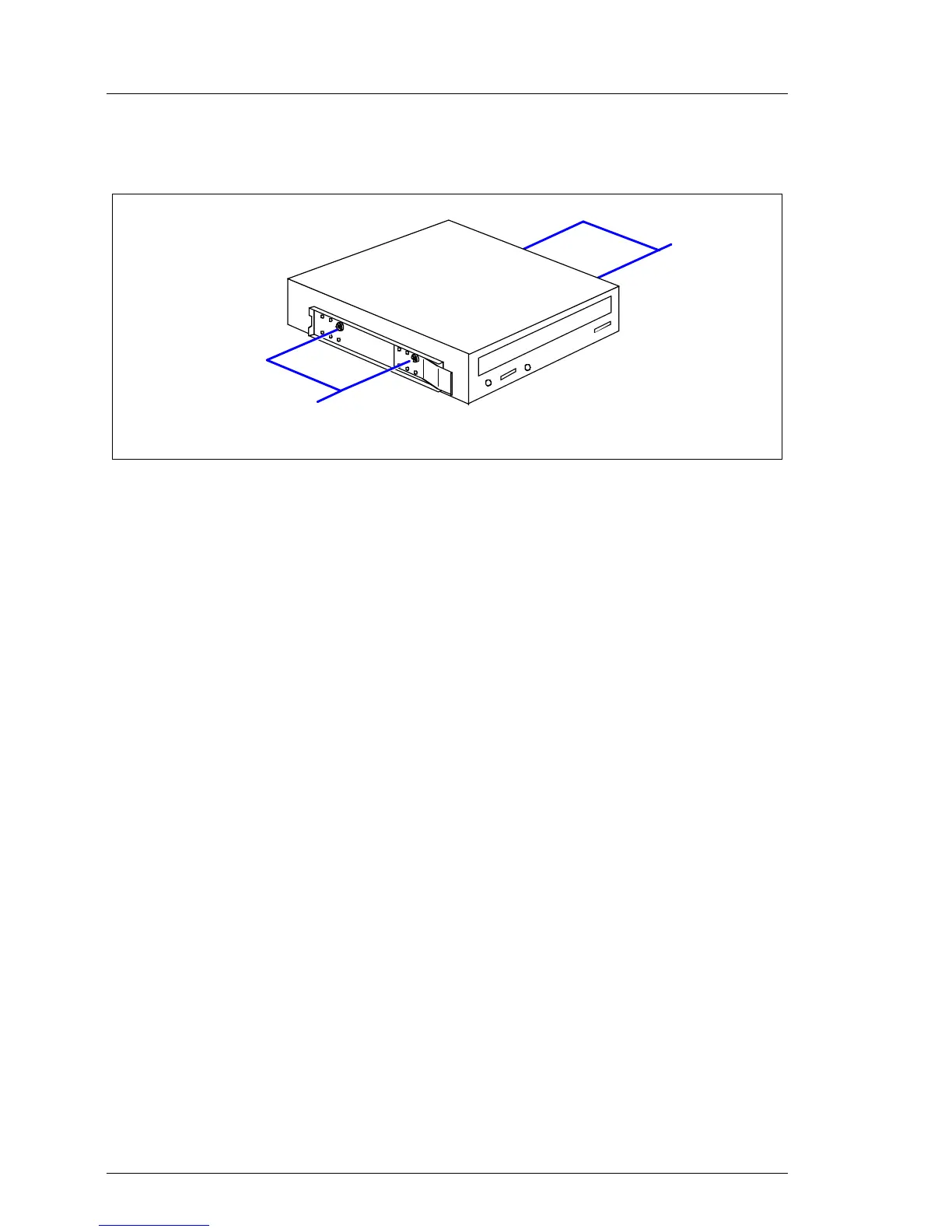

Ê Screw the two EasyClick rails on both sides of the accessible 5.25" drive (1).
Use the first hole in each upper row of holes on both sides of the drive as
depicted in the diagram.
Use screws with M3 or UNC6-32 threads (depending on the threads of the
drive being installed).
Ê Push the accessible drive into the bay until the locking mechanism of the
EasyClick rails engages.
Ê Connect one end of the IDE/SCSI flat ribbon cable to the IDE connector of
the accessible drive.
Ê Connect the power plug to the power connector of the accessible drive.
Removing an accessible 5.25" drive
Ê Disconnect the SCSI/IDE data cables and the power supply cable from the
accessible drive.
Ê Press together the two springs of the EasyClick rails until they are unlocked.
Ê Pull the drive out of its bay.
Ê Remove the EasyClick rails from the dummy cover by removing the two
screws on each side.
