Boards in PCI slots Removal/installation routines
Removing the card guide
The card guide serves as an additional holder for full-length PCI-boards
mounted into the lower three slots. You find the card guide above the SCSI hard
disk cage.
Requirements
server has been switched off
power cords have been disconnected
left side cover has been removed
Ê Remove the full-length PCI boards from the lowest PCI slots.

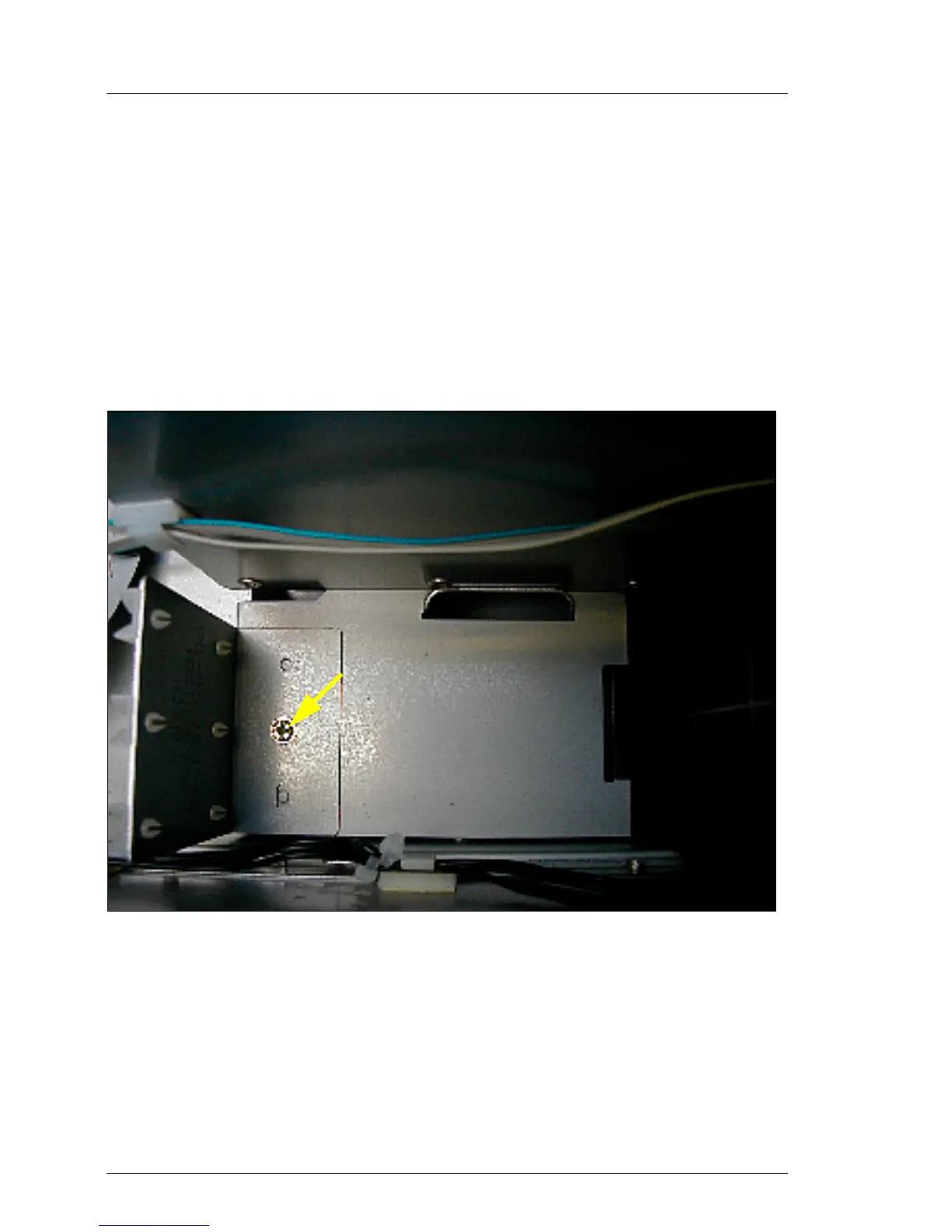

Ê Remove the screw (see arrow).
Ê Take the card guide out of the server.
Mounting is performed in reverse order.
