02–TX150S2–100 July 2004 U41057-J19-Z146-1-76
RemoteView medium Removal/installation routines
RemoteView medium
To be able to install RemoteView, the remote monitoring and diagnostics system
on the server, a RemoteView chipDISK is optionally available for the PRIMERGY
TX150S2. The chipDISK features an IDE interface and is mounted on a side of
the hard disk cage. Two different versions are available:
– chipDISK with removable CompactFlash (CF+) mass storage card
– chipDISK with removable Microdrive storage ranging from 170 MB to 1 GB
(CF+ compatible).
Installing/removing the chipDISK
Requirements
– server has been switched off
– power cords have been disconnected
– left side cover has been removed

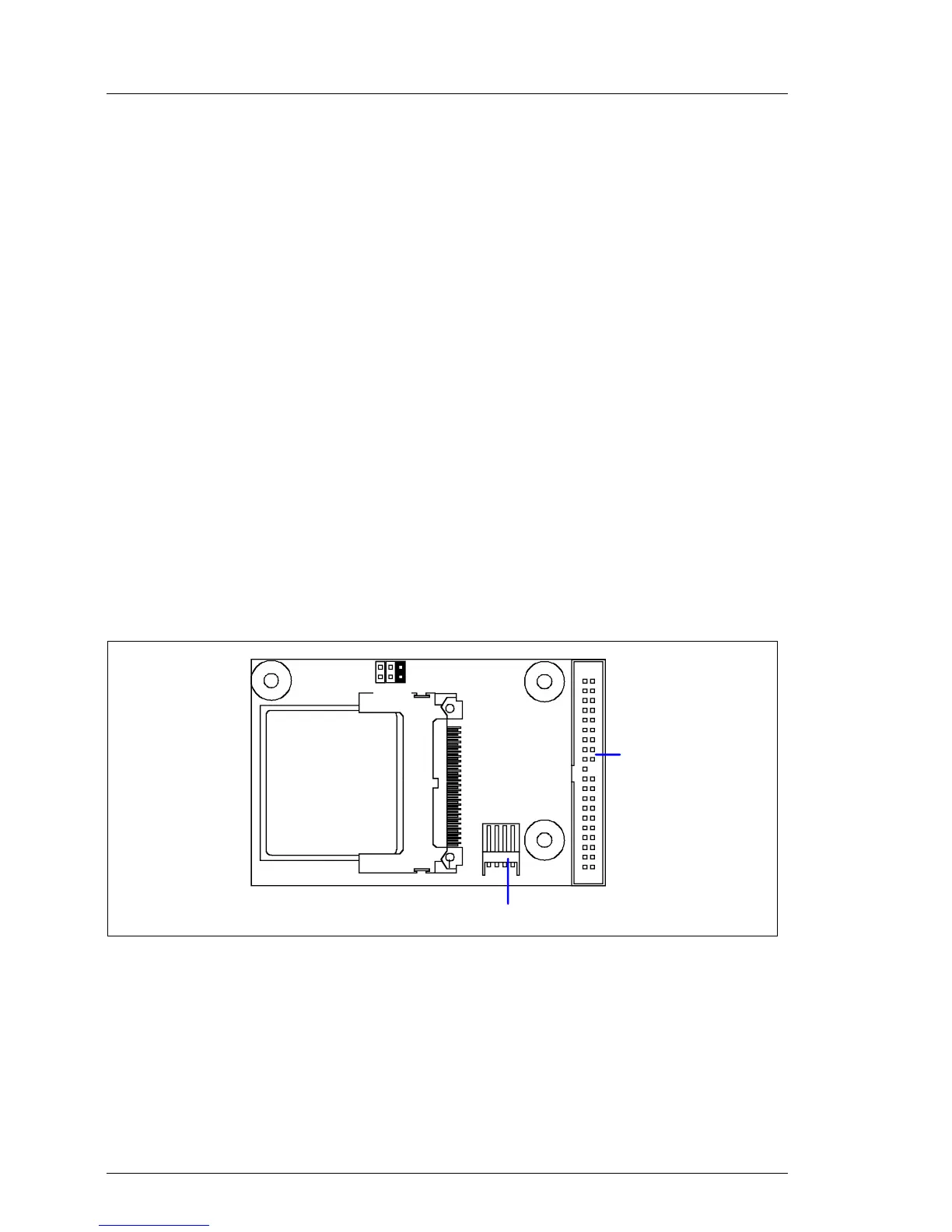

Ê Set the jumper from position MA to CS. The positions MA and SL remain
open.
Ê Connect one end of the IDE flat ribbon cable (with a coded pin) into the IDE
connector on the chipDISK (1).
Ê Connect the power connector line with the chipDISK (2).
2
1
MA
SL
CS
