SATA backplane
Part number: A3C40040589
You will find the SATA backplane with 4 slots for SATA hard disk modules located
on the hard disk cage.
The LEDs are made visible on the front side of the mounting frames via light
conductors, which are situated at the mounting frames of the drives. The signal
of the LEDs is the same as for SCSI hard disk drives. The controlling of the
LEDs does only work if a driver has been loaded.

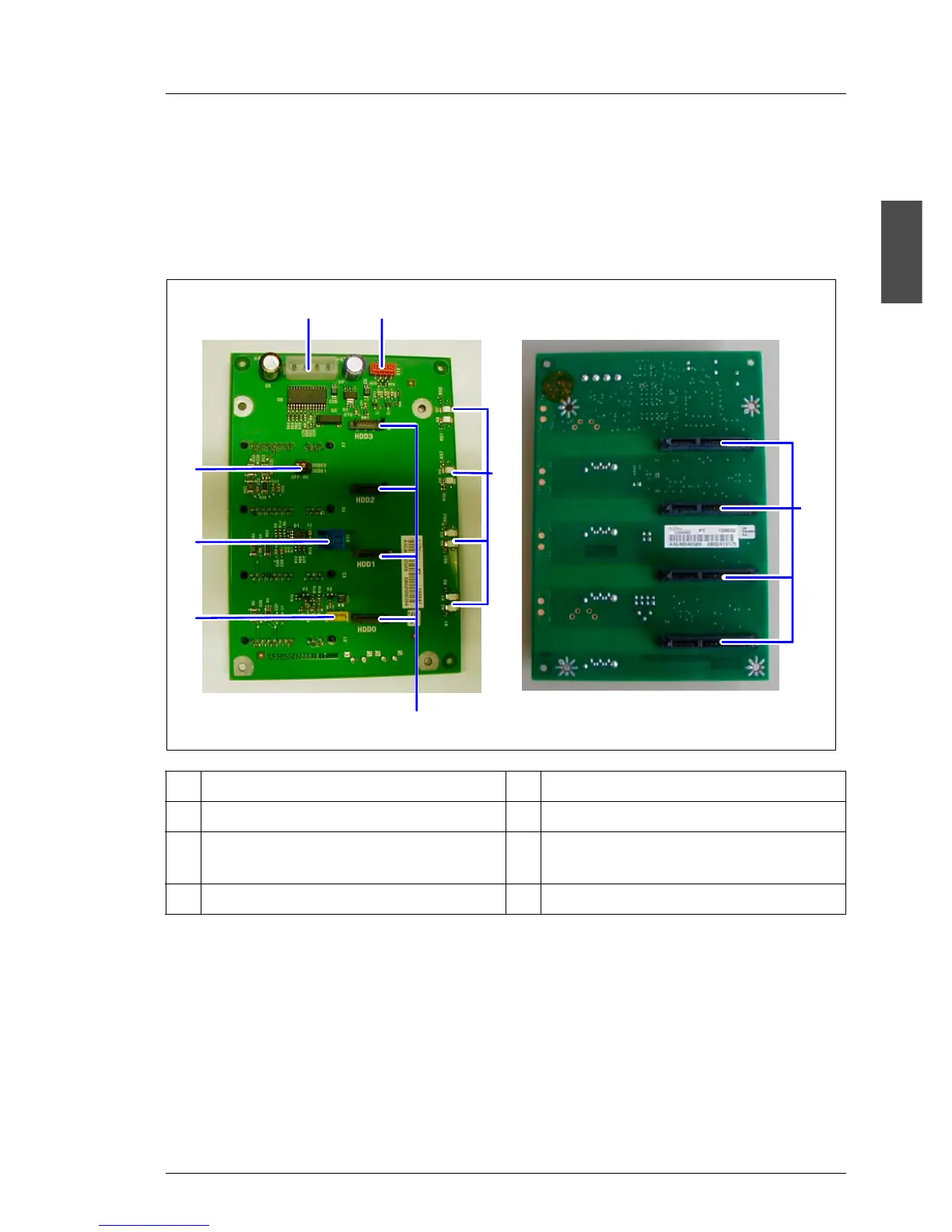

1I
2
C bus connector (X11) 5 not used (Program connector)
2 SMB connector (I
2
C bus, X10) 6 LEDs
3 Jumper FW Run (X13)
jumper is not set
7 Connectors to SATA controller (HDD0
- HDD3)
4 Connector power supply (X9) 8 SATA connectors for hard disk drives
7
8
6
4
2
3
1
5
