Removal/installation routines Accessible drives and operating panel
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k04
Removing the HDD extension box

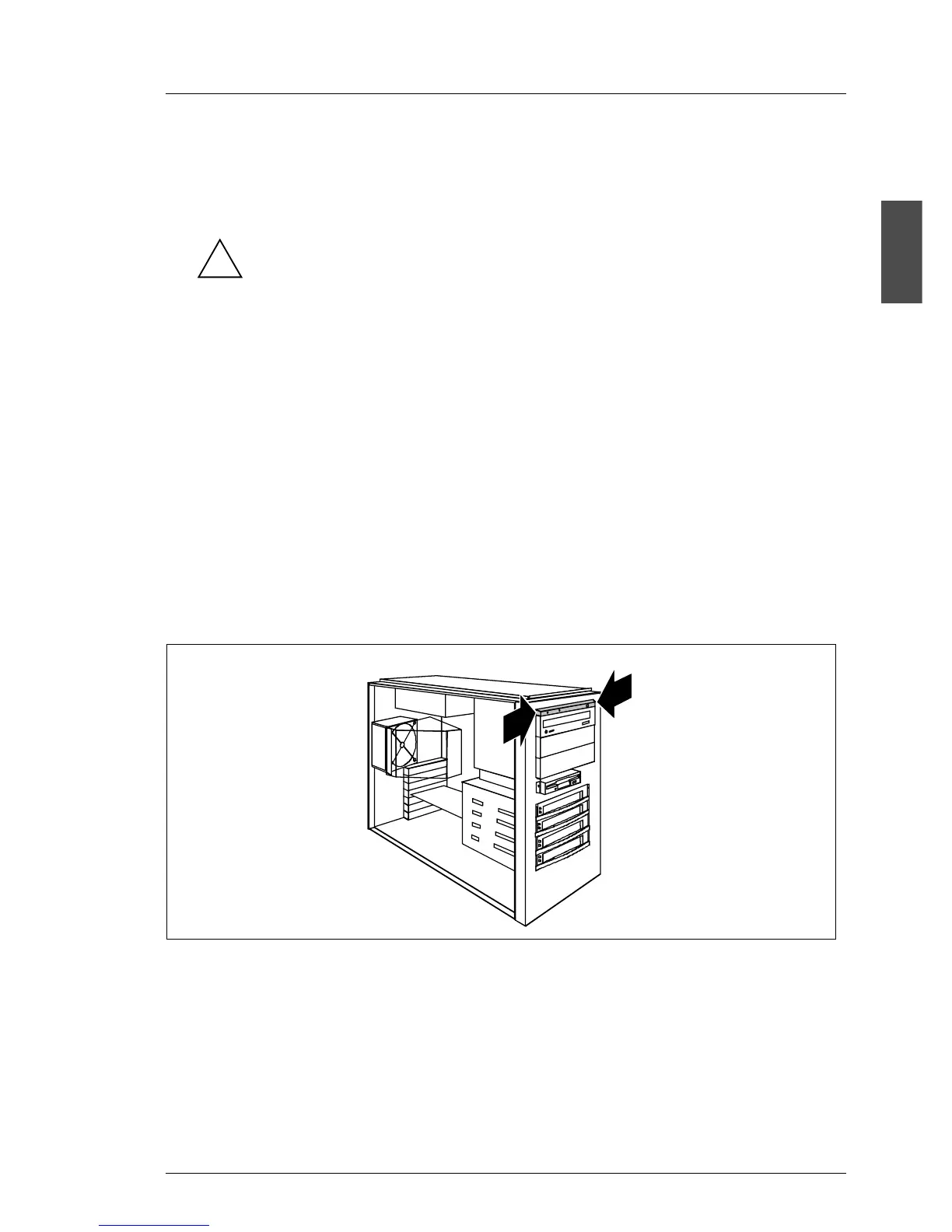

Ê Press together the two springs of the EasyClick rails until they are unlocked.
Ê Pull the HDD extension box out of the bay as far as possible.
Make sure not to strain the cables.
Ê Disconnect all cables from the HDD extension box.
Ê Pull the HDD extension box. completely out of its bay.
Ê Remove the EasyClick rails from the HDD extension box. by removing the
four screws on each side.
Replacing the operating panel board
Requirements
– server has been switched off
– power cords have been disconnected
– left side cover has been removed
– front cover has been removed
Ê Press together the two springs of the EasyClick rails until they are unlocked
(1).
Ê Pull the operating panel module out of its bay as far as it is possible to unplug
the flat ribbon cable and the USB cable from the operating panel board.
Unplug both cables.
!
