Fujitsu PRIMERGY TX150 S2 User Manual

02–TX150S2–96 July 2004 U41057-J19-Z146-1-76
Accessible drives and operating panel Removal/installation routines
Installing the HDD extension box

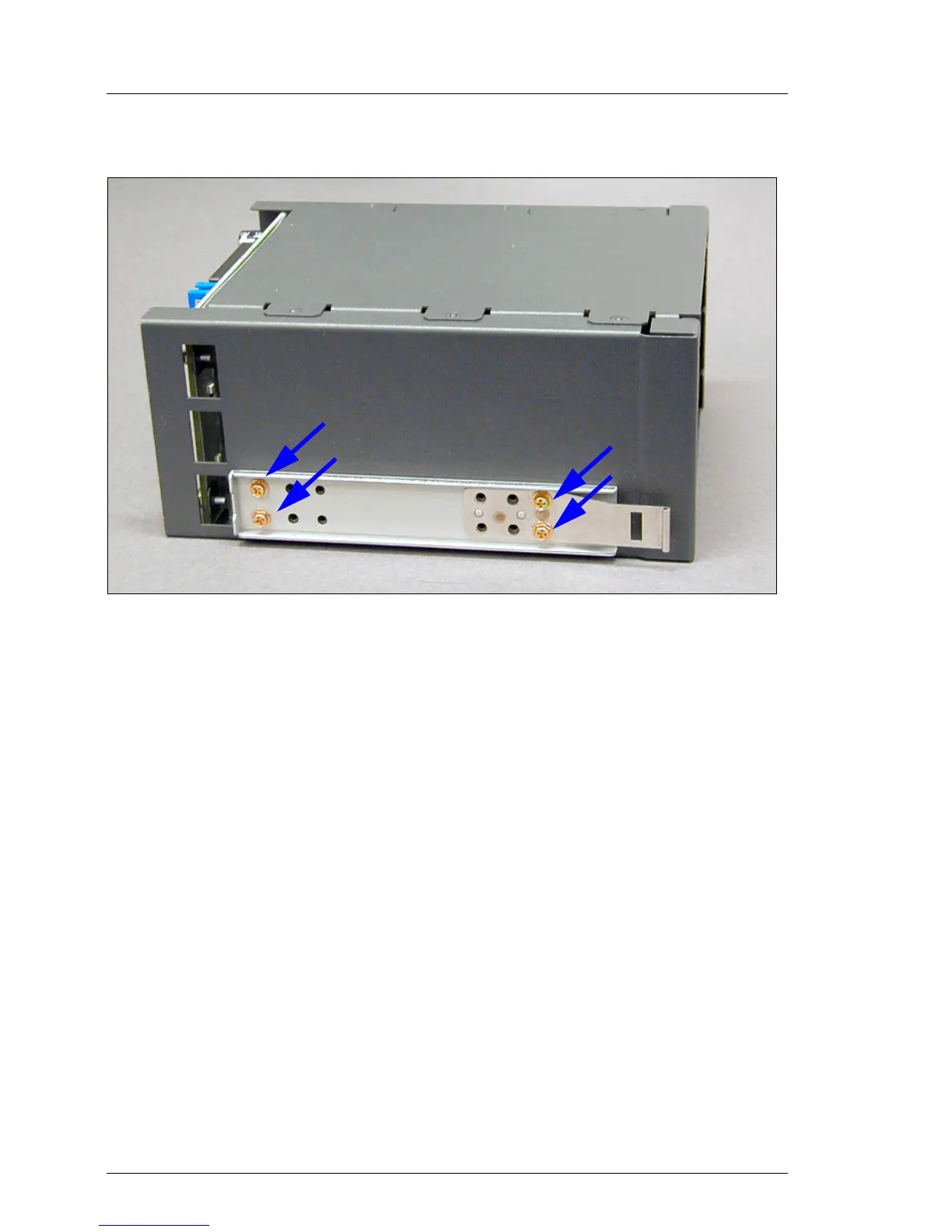

Ê Screw the two EasyClick rails on both sides of the HDD extension box using
four M3 screws. Use the marked holes.
Ê Push the HDD extension box halfway into the free bay.
Ê Connect the power plug P2 to the power connector of the HDD extension
box (see cabling on page 02-TX150S2-62).
Ê Connect the I²C bus cable with the I²C bus connector of the HDD extension
box.
Ê Connect the SCSI cable T26139-Y3927-V1 included in the conversion kit to
the SCSI connector on the HDD extension box.
Ê Route the SCSI cable and connect it to the SCSI connector on the 1- or
2-channel RAID controller.
Ê Push the HDD extension box into the bay until the locking mechanism of the
EasyClick rails engages.
