U41057-J19-Z146-1-76 July 2004 02–TX150S2–93
Removal/installation routines Accessible drives and operating panel
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k04

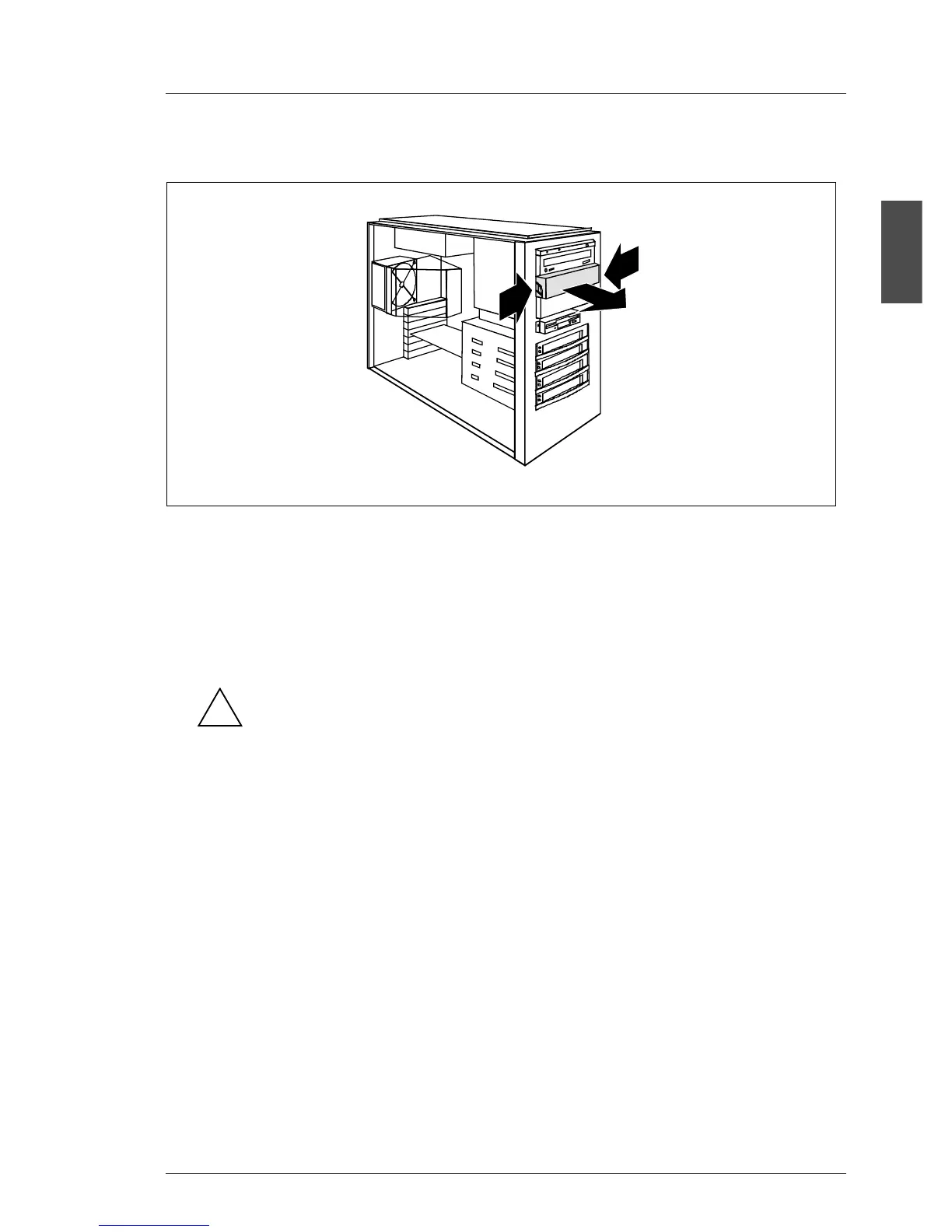

Removing dummy cover
Ê Press together the two springs of the EasyClick rails in the direction marked
(1) to disengage the locking mechanism.
Ê Pull the dummy cover out of the bay (2).
Ê Remove the EasyClick rails from the dummy cover by removing the four
screws (2xUNC6-32 and 2xM3) on each side.
Keep the dummy cover for future use. In case the 5.25"drive is later
removed and not replaced by a new one, the dummy cover has to be
reinstalled to comply with applicable EMC regulations (regulations on
electromagnetic compatibility) and satisfy cooling requirements and
fire protection measures.
Installing dummy cover
Ê Screw the two EasyClick rails on both sides of the dummy cover.
Ê Push the dummy cover into the bay until the locking mechanism of the
EasyClick rails engages on both sides.
1
1
1 2
!
