02–TX150S2–98 July 2004 U41057-J19-Z146-1-76
Accessible drives and operating panel Removal/installation routines
Ê Pull the operating panel module out of its bay as far as it is possible to get
access to the cable tie.
Ê Thread the two cables through the cable tie.
Ê Take the operating panel module out of its bay.
Ê Push the new operating panel module into its bay as far as it is possible to
have access to the cable tie.
Ê Thread the two cables through the cable tie.
Ê Push the operating panel module into its bay as far as it is possible to plug
the cables.
Ê Plug the flat ribbon cable and the USB cable on the operating panel board.
Ê Push the operating panel module into the housing until it engages.
Replacing the floppy disk drive
Requirements
– server has been switched off
– power cords have been disconnected
– left side cover has been removed
– front cover has been removed

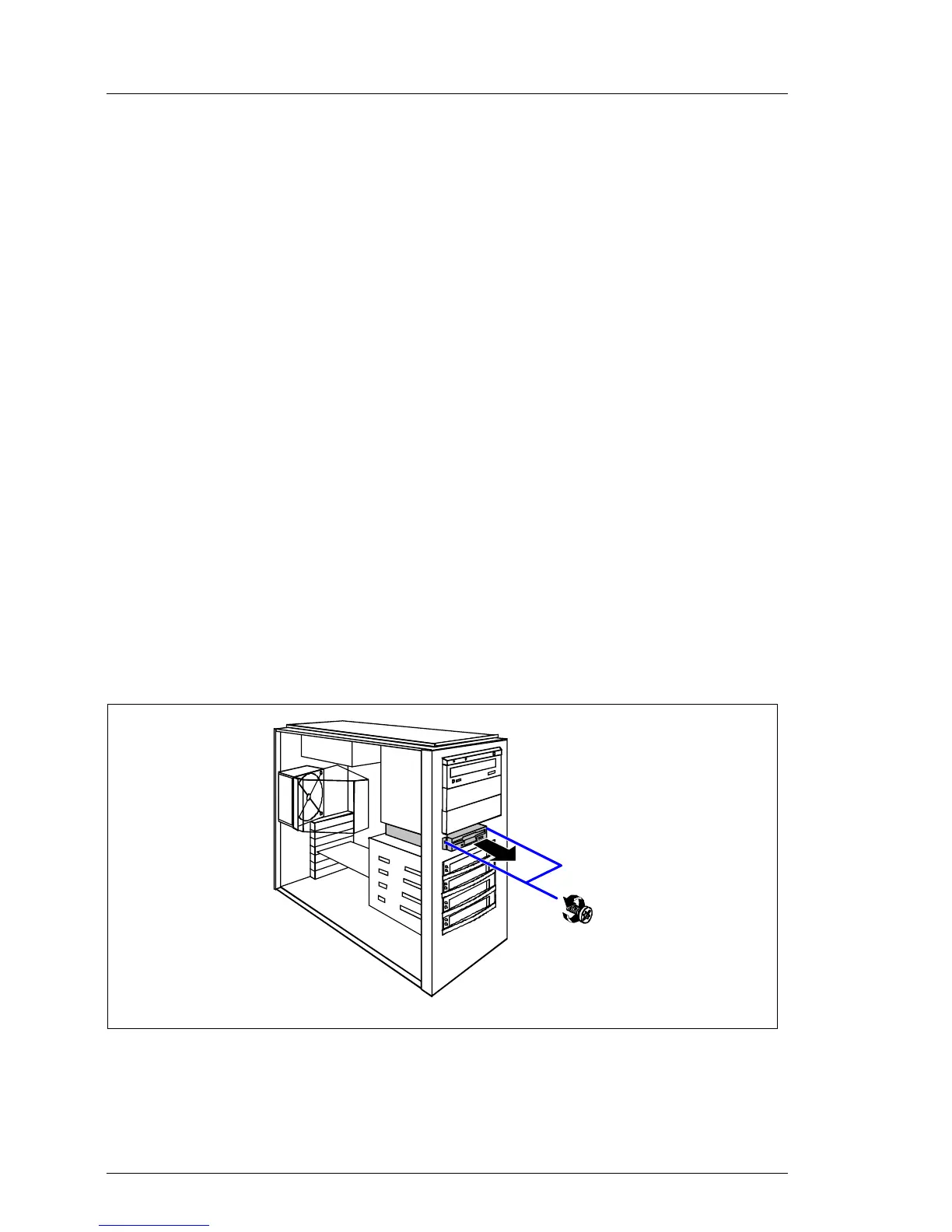

Ê Disconnect the power cable and the data cable from the floppy disk drive.
1
2
