02–TX150S2–82 July 2004 U41057-J19-Z146-1-76
Opening/closing the server Removal/installation routines

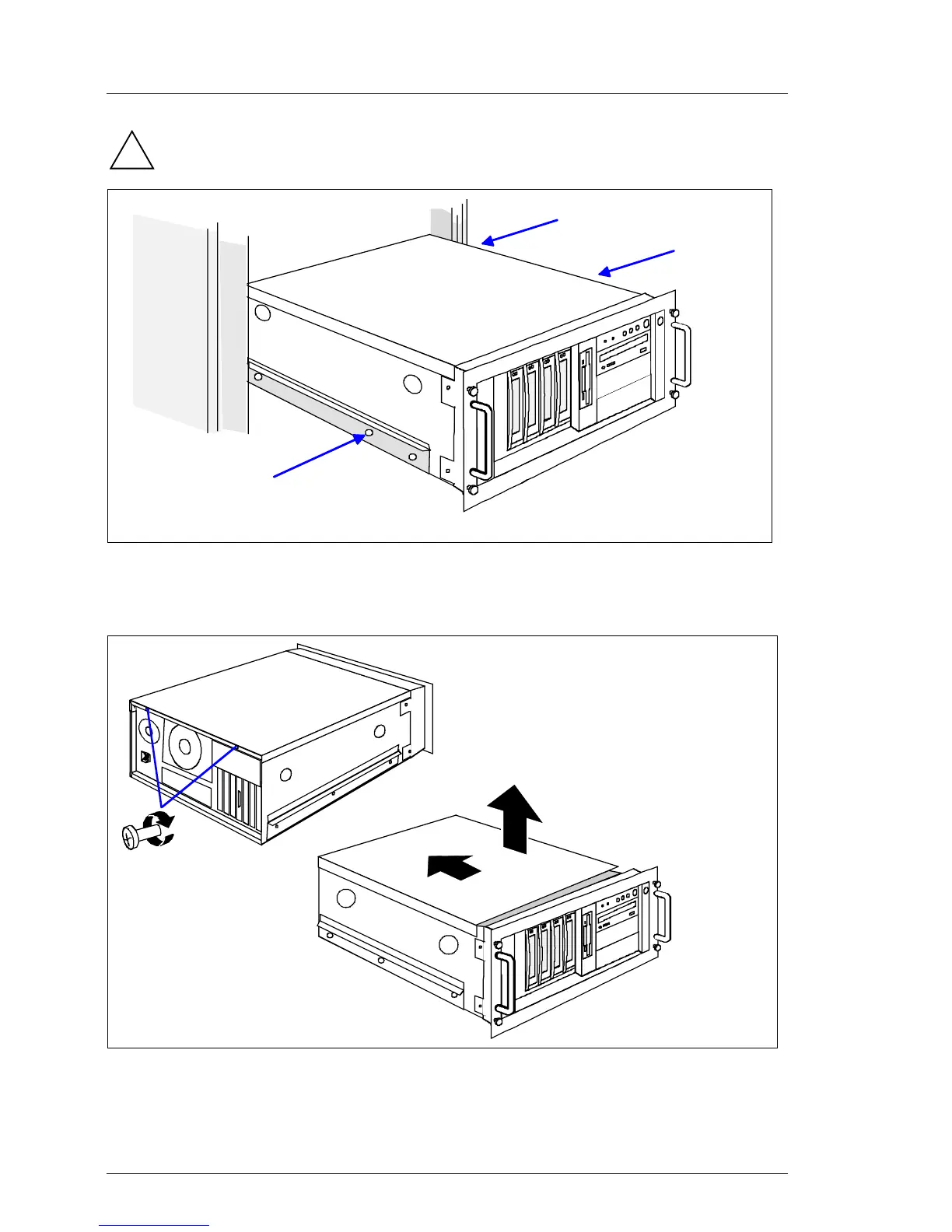

You need the help of another person to take the server out of the rack.
Ê Remove the telescopic rails on the left and right side (three screws).
Ê Take the server out of the rack.
Ê Unlock the top cover with removing the two screws at the rear (1).
!
2
2
3
1
2
