Furuno FELCOM 250 Service Manual

 9.1 Communication Unit: FB-2000
9-2

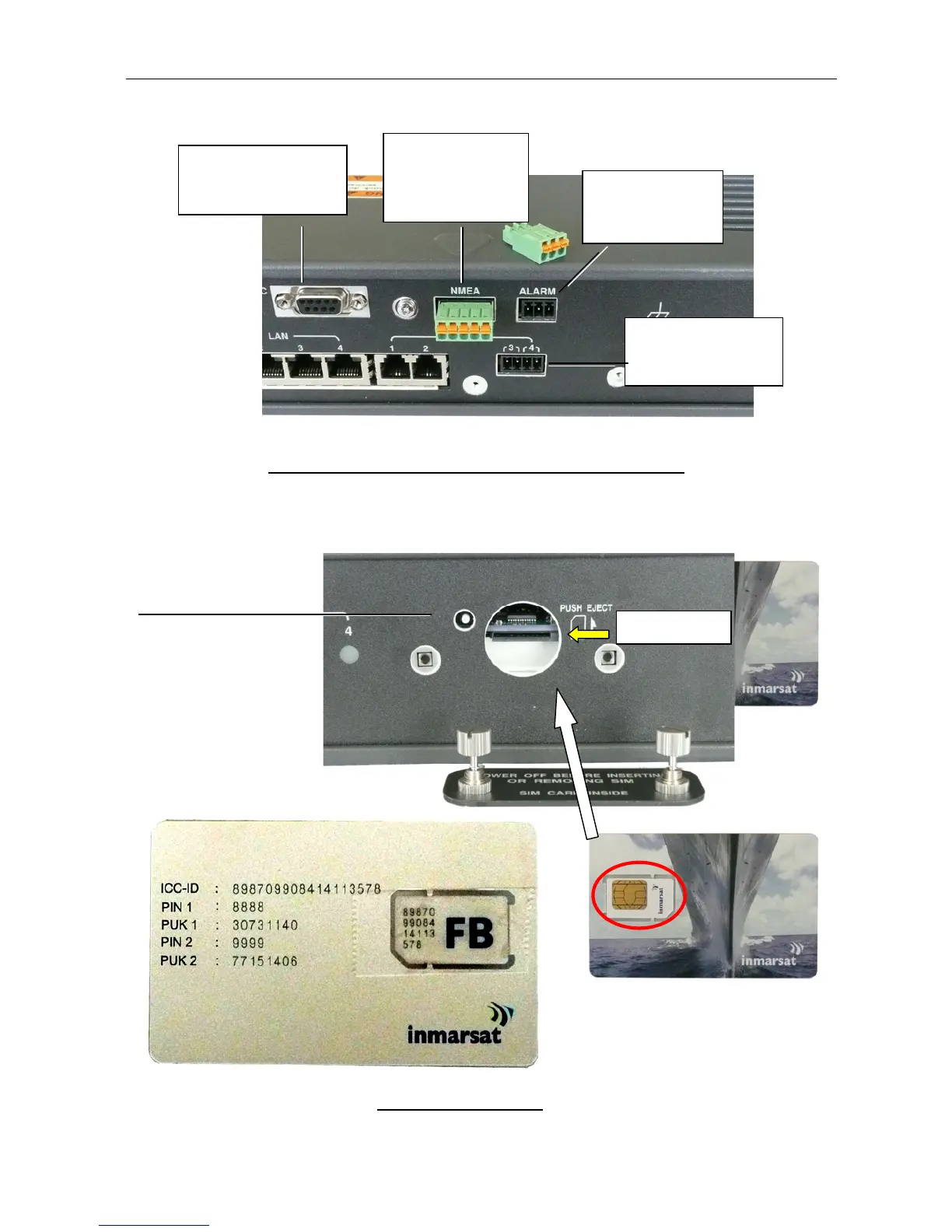

Fig. 9.1.3 Rear panel: NMEA, ALARM, TEL terminal layout
Fig. 9.1.3 Rear panel: NMEA, ALARM, TEL terminal layout
NMEA Port
1. TD-A, 2. TD-B
3. TR-A, 4. TR-B
5. GND
ALARM Port
1. TD-A, 2. TD-B
3. GND
Analog TEL port
TEL-1, TEL-2
TEL-3, TEL-4
5 1
4 1
4 1
Hardware Reset SW
(Turn power on while
pressing the SW)
Fig. 9.1.4 SIM card slot
RS-232C Port
- UDI/RDI
communication port
SIM card slot
