11.1 Communication unit: FB-2000
11-13
11.1.6 Handset: FB-8000
The power for the Handset will be supplied via the LAN cable (PoE). The specifications
for the Handset PoE (PD: Powered Device) are those conforming to Class-2 category
supporting Type-A and B. As for PoE, please refer to page AP4-5.
The communication interface with the Communication unit (HUB) is 100Base-Tx.
When you have the Handset equipped, make sure to make the settings of; Settings -> SIP.
This setting is required to be authenticated by the SIP server mounted in the HUB board
for the Communication unit in order to be able to make / receive calls using the Handset.

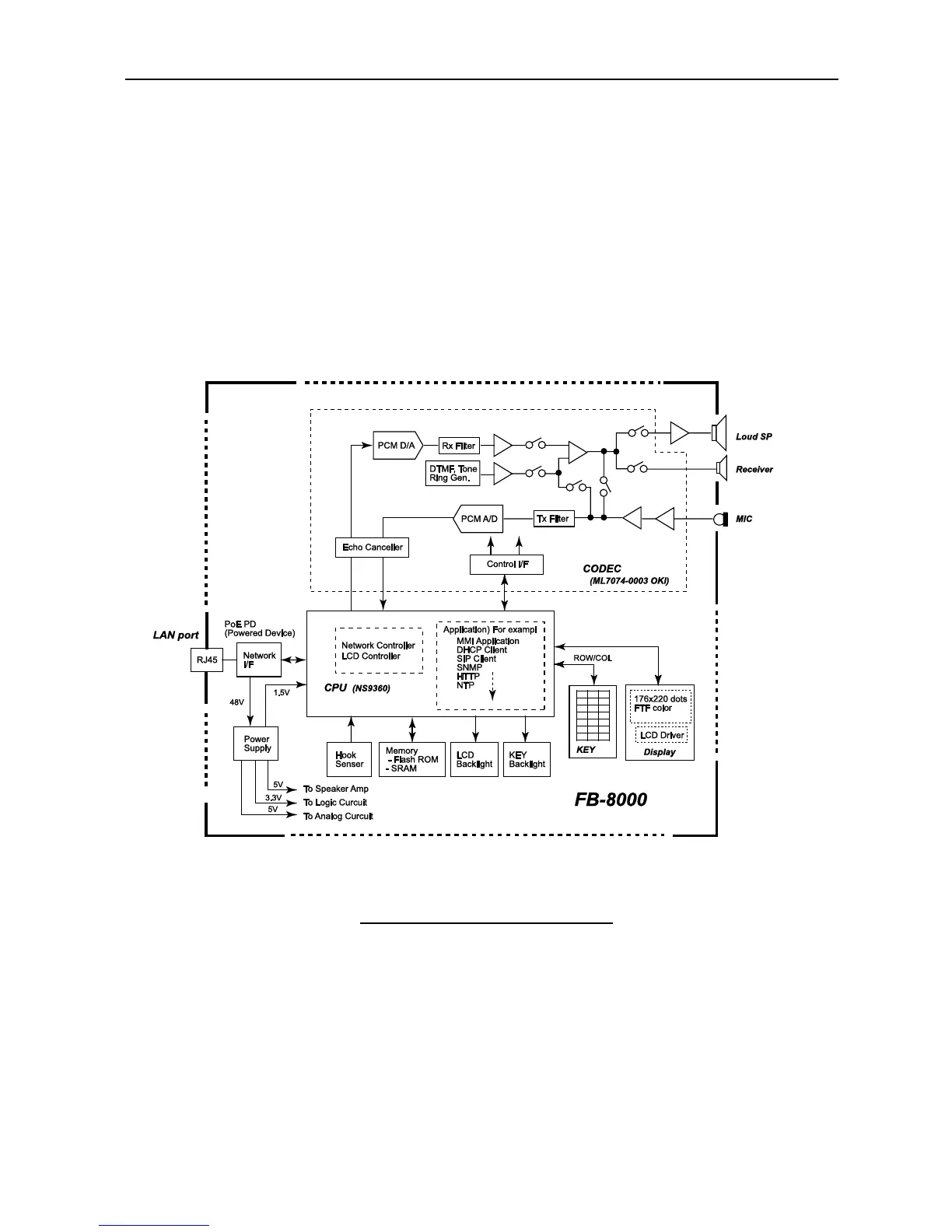

Fig. 11.1.10 Handset block diagram
