 9.5 Antenna Unit: FB-1250
9-24
9.5 Antenna Unit: FB-1250

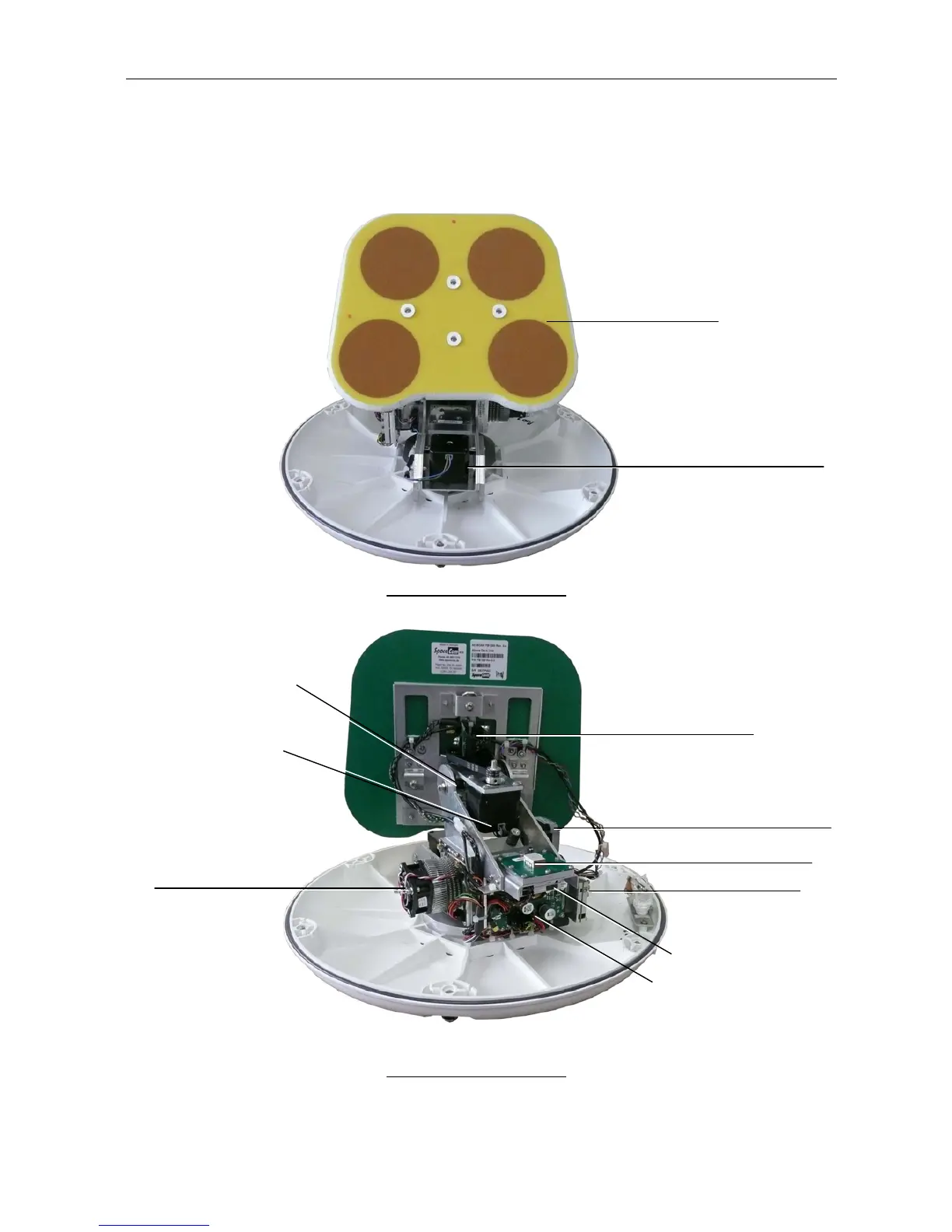

Fig. 9.5.1 Antenna unit -1
Fig. 9.5.2 Antenna unit -2
Fig. 9.5.2 Antenna unit -2
Patch antenna
AZ motor
(FL42STH38-0604A-02
1.8°0.6A)
EL motor
(FL42STH25-0404A-19
1.8°0.4A)
IF Module
HPA Module
GPS Module
LNA Module
Cross EL motor
(FL42STH38-0604A-02
1.8°0.6A)
Antenna stopper: EL
ATB Module
Gyro sensor Module
